CONVENTIONAL BRAKE SYSTEM
id041100200100
Outline
• A brake pedal with an intrusion minimizing mechanism has been adopted. As a result, driver safety has been improved.
• A vacuum pump has been adopted, improving braking force.
• For the front brake (disc), a ventilated-type disc brake has been adopted.
• For the rear brake (drum), a leading trailing-type drum brake has been adopted.
• For the rear brake (disc), a solid-type disc brake has been adopted.
Structural View

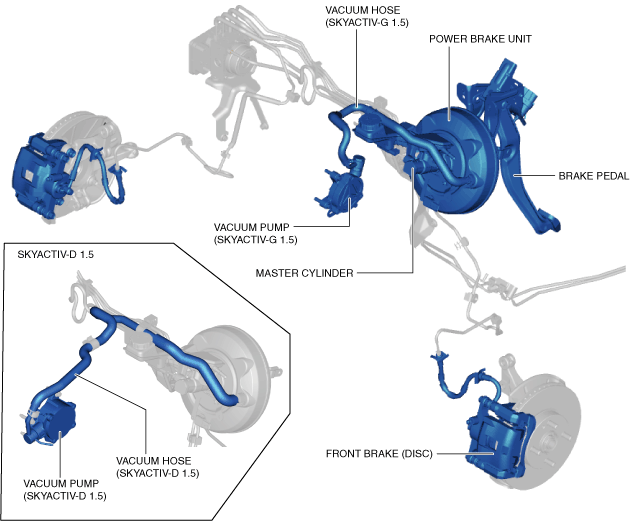

Vehicle front side (L.H.D.)
Vehicle front side (R.H.D.)
Vehicle rear side
