•  Ensures vacuum required for braking force to compensate for the decrease in intake manifold vacuum applied to the power brake unit caused by the retard intake valve closing.

•  Ensures vacuum required for braking force to compensate for the decrease in intake manifold vacuum applied to the power brake unit caused by the retard intake valve closing. In addition, it secure vacuum pressure necessary to operate the turbocharger actuator of the turbocharger with variable turbine geometry.

•  The vacuum pump is installed to the rear housing.

SKYACTIV-G 1.3, SKYACTIV-G 1.5

am2zzn00004922

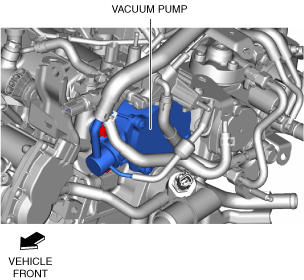

SKYACTIV-D 1.5

am2zzn00004923

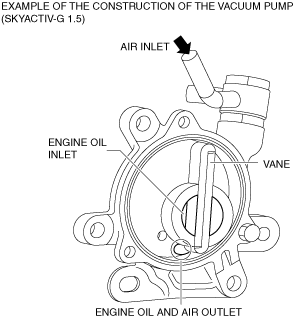

•  For smooth vane rotation, a single-vane type vacuum pump has been adopted which is equipped with an engine oil lubrication passage.

am2zzn00004924

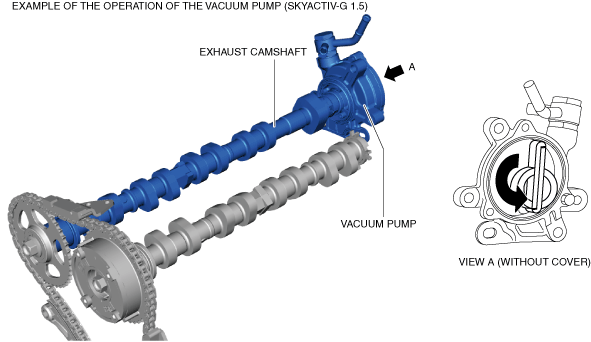

•  Because the vacuum pump is directly engaged with the exhaust camshaft, the vane in the vacuum pump rotates together with the exhaust camshaft, and the vacuum chamber is expanded and vacuum is generated.

am2zzn00004017

Vacuum generation mechanism

am2zzn00004682
