REAR BRAKE (DISC) REMOVAL/INSTALLATION

id041100800500

Note
•  To remove/install the following parts, set aside the brake caliper with the brake hose connected and suspend it using a cable.
―  Disc plate
―  Mounting support

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING.)

4.  Pump the brake pedal a few times and inspect the following:

―  The disc pad projection is securely installed to the piston groove
―  Parking brake lever stroke
―  Brake drag

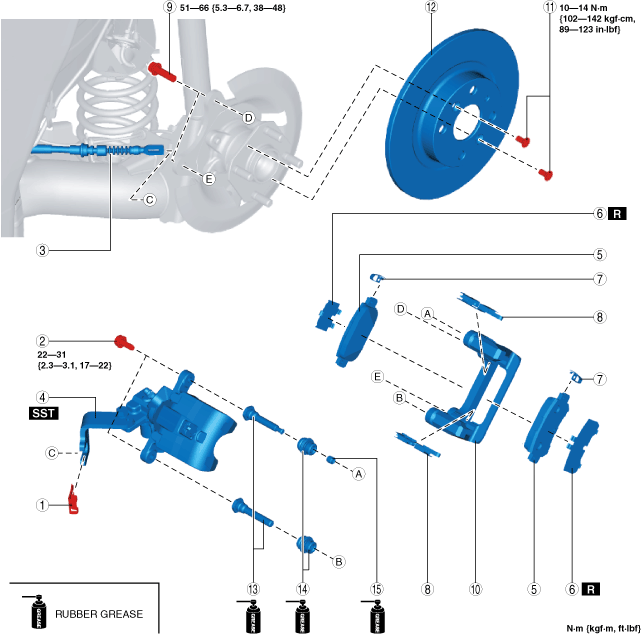

am2zzw00014772

1
Clip
2
Bolt
3
Rear parking brake cable
4
Caliper*1
(See Caliper Installation Note.)
5
Disc pad
6
Shim
7
Wear indicator
8
Guide plate
9
Bolt
10
Mounting support
11
Screw
12
Disc plate
13
Slide pin
14
Dust boot
15
Bushing

*1  :When removing/installing a caliper, disconnect/connect the brake hose.

Caliper Installation Note

1.  Clean the exposed area of the piston.

2.  Rotate the piston clockwise slowly using the SST and push the piston completely until the piston grooves are in the position shown in the figure.

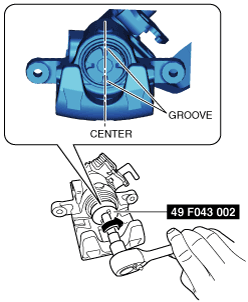

am2zzw00007351

3.  Install the caliper.
