BRAKE FLUID INSPECTION


id041100815200

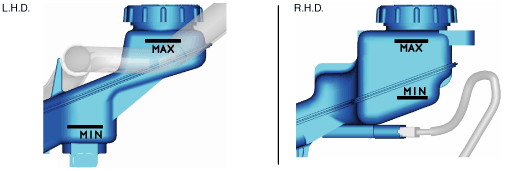

1.  Verify that the brake fluid level in the brake fluid reserve tank is between the MAX and MIN marks.

am2zzw00007389

•  If the brake fluid level is below the MIN mark, add brake fluid.

SKYACTIV-G 1.3 or SKYACTIV-G 1.5 or SKYACTIV-D 1.5 (Rear brake (disc))

Brake fluid type

SAE J1703 or FMVSS116 DOT-3 or DOT-4

SKYACTIV-D 1.5 (Rear brake (drum))

Brake fluid type

SAE J1703 or FMVSS116 DOT-4
