•  If a malfunction is detected in the system with the parking brake released, the brake system/ABS warning light illuminates to notify the driver.

•  The brake system/ABS warning light illuminates during a system malfunction, and the control is as follows:

•  The brake system warning light illuminates when the parking brake is applied,

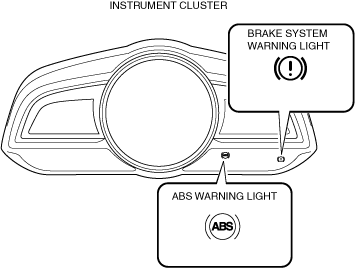

•  The brake system/ABS warning light is built into the instrument cluster.

•  When the DSC system and CAN lines are functioning normally, the brake system/ABS warning light illuminates when the ignition is switched ON to check for a burned-out bulb, and then turns off after approx. 3 s. At this time, while the parking brake is activated, the brake system warning light remains illuminated, however, it turns off after the parking brake is released.

•  If a malfunction is detected in the system with the parking brake released, the ABS HU/CM sends the brake system/ABS warning lights request signal. When the instrument cluster receives the brake system/ABS warning lights request signal from the ABS HU/CM, the microcomputer turns the transistor on and a ground circuit with the brake system/ABS warning light is established. Therefore, the brake system/ABS warning light illuminates.

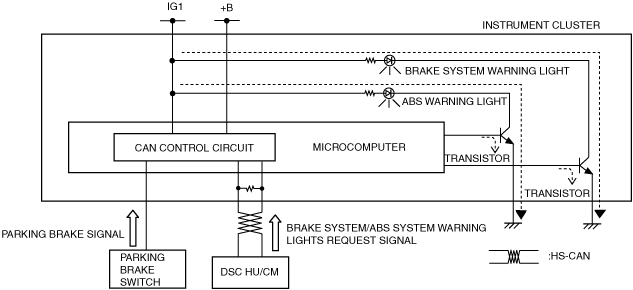

am2zzn00004883

•  For vehicles with center display, a warning message in the center display is displayed when the ABS warning light is turned on. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

•  For vehicles with center display, a warning message in the center display is displayed when the brake system warning light is turned on. For the message content and verification method, refer to the CENTER DISPLAY. (See CENTER DISPLAY [WITH CENTER DISPLAY].)

•  Function not equipped.
