TRANSMISSION/TRANSAXLE

id050000100900

Features

Clutch, manual transaxle

• A newly developed, F65M-R-type manual transaxle (SKYACTIV-MT) with 5 forward gears and 1 reverse gear has been adopted for the SKYACTIV-G 1.5.

• A newly developed, F66M-R-type manual transaxle (SKYACTIV-MT) with 6 forward gears and 1 reverse gear has been adopted for the SKYACTIV-G 1.5 and SKYACTIV-D 1.5.

Automatic transaxle

• A newly developed, electronically controlled automatic transaxle (SKYACTIV-DRIVE) with 6 forward gears, 1 reverse gear, and a TCC mechanism has been adopted. (CW6A-EL-type for SKYACTIV-G 1.3 and SKYACTIV-G 1.5, EW6A-EL-type for SKYACTIV-D 1.5)

• An ideal automatic transaxle has been realized by pursuing fuel economy improvement, direct feel, and smooth shifting using the existing automatic transaxle as the base.

Main features

― Based on the adoption of a full range lock-up mechanism, a contribution to low fuel consumption and the direct feel of a manual transaxle vehicle have been realized.

― A control valve body has been adopted with an integrated TCM, and the improved responsiveness and precision smooth shifting have been realized.

Specifications

Clutch [F65M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5

Clutch control

Hydraulic

Clutch pedal

Type

Suspended design

Pedal ratio

4.7

Full stroke (reference)

(mm {in})

130 {5.12}

Clutch master cylinder inner diameter

(mm {in})

15.87 {0.6248}

Clutch release cylinder inner diameter

(mm {in})

20.64 {0.8126}

Clutch cover

Spring type

Diaphragm

Set load

(N {kgf, lbf})

5,200 {530.3, 1169}

Clutch disc

Outer diameter

(mm {in})

200 {7.87}

Inner diameter

(mm {in})

132 {5.20}

Clutch fluid type

SAE J1703 or FMVSS116 DOT-3 or DOT-4

Item	Specifications
Clutch control	Hydraulic
Clutch pedal	Type	Suspended design
Pedal ratio	4.7
Full stroke (reference)	(mm {in})	130 {5.12}
Clutch master cylinder inner diameter	(mm {in})	15.87 {0.6248}
Clutch release cylinder inner diameter	(mm {in})	20.64 {0.8126}
Clutch cover	Spring type	Diaphragm
Set load	(N {kgf, lbf})	5,200 {530.3, 1169}
Clutch disc	Outer diameter	(mm {in})	200 {7.87}
Inner diameter	(mm {in})	132 {5.20}
Clutch fluid type	SAE J1703 or FMVSS116 DOT-3 or DOT-4

Clutch [F66M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5

SKYACTIV-D 1.5

Clutch control

Hydraulic

Hydraulic

Clutch pedal

Type

Suspended design

Suspended design

Pedal ratio

4.7

4.7

Full stroke (reference)

(mm {in})

130 {5.12}

140 {5.51}

Clutch master cylinder inner diameter

(mm {in})

15.87 {0.6248}

15.87 {0.6248}

Clutch release cylinder inner diameter

(mm {in})

20.64 {0.8126}

20.64 {0.8126}

Clutch cover

Spring type

Diaphragm

Diaphragm

Set load

(N {kgf, lbf})

5,200 {530.3, 1169}

6,800 {693.4, 1529}

Clutch disc

Outer diameter

(mm {in})

200 {7.87}

228 {8.98}

Inner diameter

(mm {in})

132 {5.20}

155 {6.10}

Clutch fluid type

Australian specs.: SAE J1703 or FMVSS116 DOT-3

Except Australian specs.: SAE J1703 or FMVSS116 DOT-3 or DOT-4

SAE J1703 or FMVSS116 DOT-3 or DOT-4

Item	Specifications
Clutch control	Hydraulic	Hydraulic
Clutch pedal	Type	Suspended design	Suspended design
Pedal ratio	4.7	4.7
Full stroke (reference)	(mm {in})	130 {5.12}	140 {5.51}
Clutch master cylinder inner diameter	(mm {in})	15.87 {0.6248}	15.87 {0.6248}
Clutch release cylinder inner diameter	(mm {in})	20.64 {0.8126}	20.64 {0.8126}
Clutch cover	Spring type	Diaphragm	Diaphragm
Set load	(N {kgf, lbf})	5,200 {530.3, 1169}	6,800 {693.4, 1529}
Clutch disc	Outer diameter	(mm {in})	200 {7.87}	228 {8.98}
Inner diameter	(mm {in})	132 {5.20}	155 {6.10}
Clutch fluid type	Australian specs.: SAE J1703 or FMVSS116 DOT-3 Except Australian specs.: SAE J1703 or FMVSS116 DOT-3 or DOT-4	SAE J1703 or FMVSS116 DOT-3 or DOT-4

Manual Transaxle [F65M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5

Transaxle control

Floor-shift

Operation system

Cable

Shift assist

Forward

Synchromesh

Reverse

Constant mesh

Gear ratio

1GR

3.583

2GR

1.904

3GR

1.218

4GR

0.918

5GR

0.717

Reverse

3.454

Final gear ratio

3.619

Manual transaxle oil

Grade

API service GL-4

Viscosity

All season

SAE 75W-80

Capacity

(approx. quantity)

(L {US qt, Imp qt})

1.59 {1.68, 1.40}

Item	Specifications
Transaxle control	Floor-shift
Operation system	Cable
Shift assist	Forward	Synchromesh
Reverse	Constant mesh
Gear ratio	1GR	3.583
2GR	1.904
3GR	1.218
4GR	0.918
5GR	0.717
Reverse	3.454
Final gear ratio	3.619
Manual transaxle oil	Grade	API service GL-4
Viscosity	All season	SAE 75W-80
Capacity (approx. quantity)	(L {US qt, Imp qt})	1.59 {1.68, 1.40}

Manual Transaxle [F66M-R]

Item

Specifications

Engine type

SKYACTIV-G 1.5

SKYACTIV-D 1.5

Transaxle control

Floor-shift

Operation system

Cable

Shift assist

Forward

Synchromesh

Reverse

Constant mesh

Gear ratio

1GR

3.583

3.230

2GR

1.904

1.652

3GR

1.290

1.088

4GR

0.972

0.775

5GR

0.795

0.580

6GR

0.645

0.490

Reverse

3.454

3.454

Final gear ratio

With i-stop: 4.388

Without i-stop: 4.105

3.850

Manual transaxle oil

Grade

API service GL-4

API service GL-4

Viscosity

All season

SAE 75W-80

SAE 75W-80

Capacity

(approx. quantity)

(L {US qt, Imp qt})

1.59 {1.68, 1.40}

1.64 {1.73, 1.44}

Item	Specifications
Transaxle control	Floor-shift
Operation system	Cable
Shift assist	Forward	Synchromesh
Reverse	Constant mesh
Gear ratio	1GR	3.583	3.230
2GR	1.904	1.652
3GR	1.290	1.088
4GR	0.972	0.775
5GR	0.795	0.580
6GR	0.645	0.490
Reverse	3.454	3.454
Final gear ratio	With i-stop: 4.388 Without i-stop: 4.105	3.850
Manual transaxle oil	Grade	API service GL-4	API service GL-4
Viscosity	All season	SAE 75W-80	SAE 75W-80
Capacity (approx. quantity)	(L {US qt, Imp qt})	1.59 {1.68, 1.40}	1.64 {1.73, 1.44}

Automatic Transaxle [CW6A-EL]

Item

Specifications

Engine type

SKYACTIV-G 1.3

SKYACTIV-G 1.5

Gear ratio

1GR

3.529

2GR

2.025

3GR

1.348

4GR

1.000

5GR

0.742

6GR

0.594

Reverse

2.994

Final gear ratio

4.060

4.319

ATF

Type

ATF FZ

Capacity

(Approx. quantity)

(L {US qt, lmp qt})

7.2 {7.6, 6.3}

Torque converter stall torque ratio

2.22

Hydraulic system

(Number of drive/driven gear plates)

Low clutch

3/3

High clutch

4/4

Low and reverse brake

4/4

2-6 brake

3/3

R-3-5 brake

2/2

Front planetary gear

(Number of teeth)

Front sun gear

34

Front pinion gear

26

Front internal gear

86

Rear planetary gear

(Number of teeth)

Rear sun gear

37

Rear pinion gear

26

Rear internal gear

89

Reduction planetary gear

(Number of teeth)

Reduction sun gear

49

Reduction pinion gear No.1

22

Reduction pinion gear No.2

23

Reduction internal gear

100

Primary gear (number of teeth)

41

Secondary gear (number of teeth)

46

Output gear (number of teeth)

21

20

Ring gear (number of teeth)

76

77

Item	Specifications
Gear ratio	1GR	3.529
2GR	2.025
3GR	1.348
4GR	1.000
5GR	0.742
6GR	0.594
Reverse	2.994
Final gear ratio	4.060	4.319
ATF	Type	ATF FZ
Capacity (Approx. quantity)	(L {US qt, lmp qt})	7.2 {7.6, 6.3}
Torque converter stall torque ratio	2.22
Hydraulic system (Number of drive/driven gear plates)	Low clutch	3/3
High clutch	4/4
Low and reverse brake	4/4
2-6 brake	3/3
R-3-5 brake	2/2
Front planetary gear (Number of teeth)	Front sun gear	34
Front pinion gear	26
Front internal gear	86
Rear planetary gear (Number of teeth)	Rear sun gear	37
Rear pinion gear	26
Rear internal gear	89
Reduction planetary gear (Number of teeth)	Reduction sun gear	49
Reduction pinion gear No.1	22
Reduction pinion gear No.2	23
Reduction internal gear	100
Primary gear (number of teeth)	41
Secondary gear (number of teeth)	46
Output gear (number of teeth)	21	20
Ring gear (number of teeth)	76	77

Automatic Transaxle [EW6A-EL]

Item

Specifications

Engine type

SKYACTIV-D 1.5

Gear ratio

1GR

3.552

2GR

2.022

3GR

1.452

4GR

1.000

5GR

0.708

6GR

0.599

Reverse

3.893

Final gear ratio

3.389

ATF

Type

ATF FZ

Capacity

(Approx. quantity)

(L {US qt, lmp qt})

7.8 {8.2, 6.9}

Torque converter stall torque ratio

1.82

Hydraulic system

(Number of drive/driven gear plates)

Low clutch

5/5

High clutch

5/5

Low and reverse brake

3/5

2-6 brake

3/5

R-3-5 brake

2/4

Front planetary gear

(Number of teeth)

Front sun gear

38

Front pinion gear

29

Front internal gear

97

Rear planetary gear

(Number of teeth)

Rear sun gear

40

Rear pinion gear

27

Rear internal gear

95

Reduction planetary gear

(Number of teeth)

Reduction sun gear

68

Reduction pinion gear

21

Reduction internal gear

109

Primary gear (number of teeth)

56

Secondary gear (number of teeth)

59

Output gear (number of teeth)

23

Ring gear (number of teeth)

74

Item	Specifications
Gear ratio	1GR	3.552
2GR	2.022
3GR	1.452
4GR	1.000
5GR	0.708
6GR	0.599
Reverse	3.893
Final gear ratio	3.389
ATF	Type	ATF FZ
Capacity (Approx. quantity)	(L {US qt, lmp qt})	7.8 {8.2, 6.9}
Torque converter stall torque ratio	1.82
Hydraulic system (Number of drive/driven gear plates)	Low clutch	5/5
High clutch	5/5
Low and reverse brake	3/5
2-6 brake	3/5
R-3-5 brake	2/4
Front planetary gear (Number of teeth)	Front sun gear	38
Front pinion gear	29
Front internal gear	97
Rear planetary gear (Number of teeth)	Rear sun gear	40
Rear pinion gear	27
Rear internal gear	95
Reduction planetary gear (Number of teeth)	Reduction sun gear	68
Reduction pinion gear	21
Reduction internal gear	109
Primary gear (number of teeth)	56
Secondary gear (number of teeth)	59
Output gear (number of teeth)	23
Ring gear (number of teeth)	74

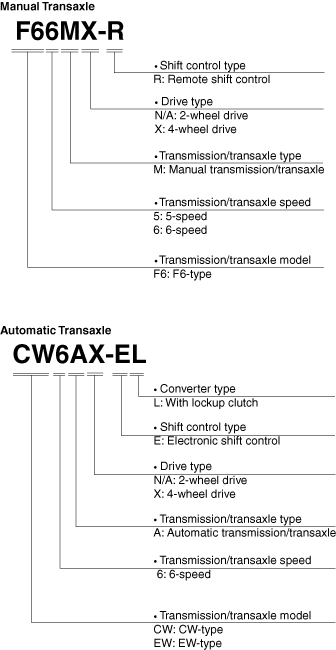

Identification

am2zzn00005000

Item			Specifications
Engine type			SKYACTIV-G 1.5
Clutch control			Hydraulic
Clutch pedal	Type		Suspended design
	Pedal ratio		4.7
	Full stroke (reference)	(mm {in})	130 {5.12}
Clutch master cylinder inner diameter		(mm {in})	15.87 {0.6248}
Clutch release cylinder inner diameter		(mm {in})	20.64 {0.8126}
Clutch cover	Spring type		Diaphragm
Clutch cover	Set load	(N {kgf, lbf})	5,200 {530.3, 1169}
Clutch disc	Outer diameter	(mm {in})	200 {7.87}
Clutch disc	Inner diameter	(mm {in})	132 {5.20}
Clutch fluid type			SAE J1703 or FMVSS116 DOT-3 or DOT-4

Item			Specifications
Engine type			SKYACTIV-G 1.5	SKYACTIV-D 1.5
Clutch control			Hydraulic	Hydraulic
Clutch pedal	Type		Suspended design	Suspended design
	Pedal ratio		4.7	4.7
	Full stroke (reference)	(mm {in})	130 {5.12}	140 {5.51}
Clutch master cylinder inner diameter		(mm {in})	15.87 {0.6248}	15.87 {0.6248}
Clutch release cylinder inner diameter		(mm {in})	20.64 {0.8126}	20.64 {0.8126}
Clutch cover	Spring type		Diaphragm	Diaphragm
Clutch cover	Set load	(N {kgf, lbf})	5,200 {530.3, 1169}	6,800 {693.4, 1529}
Clutch disc	Outer diameter	(mm {in})	200 {7.87}	228 {8.98}
Clutch disc	Inner diameter	(mm {in})	132 {5.20}	155 {6.10}
Clutch fluid type			Australian specs.: SAE J1703 or FMVSS116 DOT-3 Except Australian specs.: SAE J1703 or FMVSS116 DOT-3 or DOT-4	SAE J1703 or FMVSS116 DOT-3 or DOT-4

Item			Specifications
Engine type			SKYACTIV-G 1.3	SKYACTIV-G 1.5
Gear ratio		1GR	3.529
		2GR	2.025
		3GR	1.348
		4GR	1.000
		5GR	0.742
		6GR	0.594
		Reverse	2.994
Final gear ratio			4.060	4.319
ATF	Type		ATF FZ
ATF	Capacity (Approx. quantity)	(L {US qt, lmp qt})	7.2 {7.6, 6.3}
Torque converter stall torque ratio			2.22
Hydraulic system (Number of drive/driven gear plates)	Low clutch		3/3
	High clutch		4/4
	Low and reverse brake		4/4
	2-6 brake		3/3
	R-3-5 brake		2/2
Front planetary gear (Number of teeth)	Front sun gear		34
	Front pinion gear		26
	Front internal gear		86
Rear planetary gear (Number of teeth)	Rear sun gear		37
	Rear pinion gear		26
	Rear internal gear		89
Reduction planetary gear (Number of teeth)	Reduction sun gear		49
	Reduction pinion gear No.1		22
	Reduction pinion gear No.2		23
	Reduction internal gear		100
Primary gear (number of teeth)			41
Secondary gear (number of teeth)			46
Output gear (number of teeth)			21	20
Ring gear (number of teeth)			76	77
