ON-BOARD DIAGNOSTIC SYSTEM FOREWORD [TCM (EW6A-EL)]

id0502p7027300

• If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure.

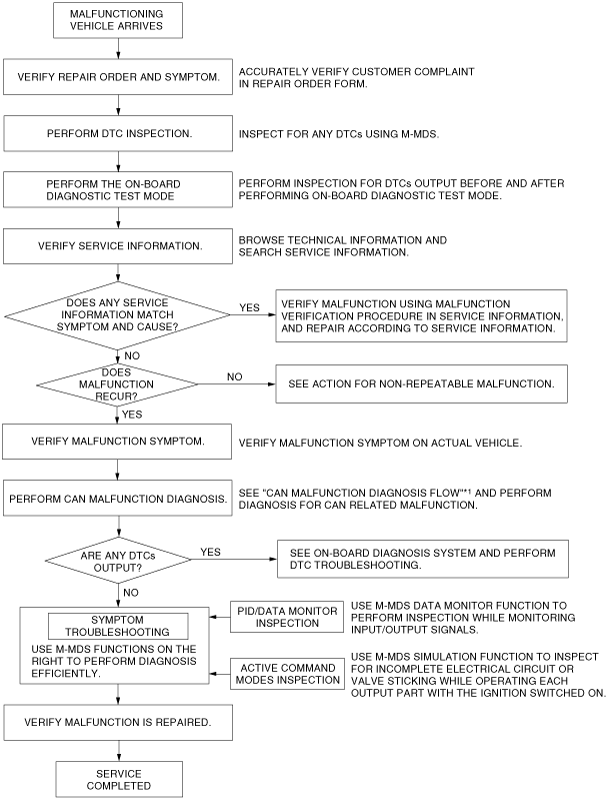

Troubleshooting Procedure

am6zzw00011451

*1 :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-D 1.5 (R.H.D.)].)

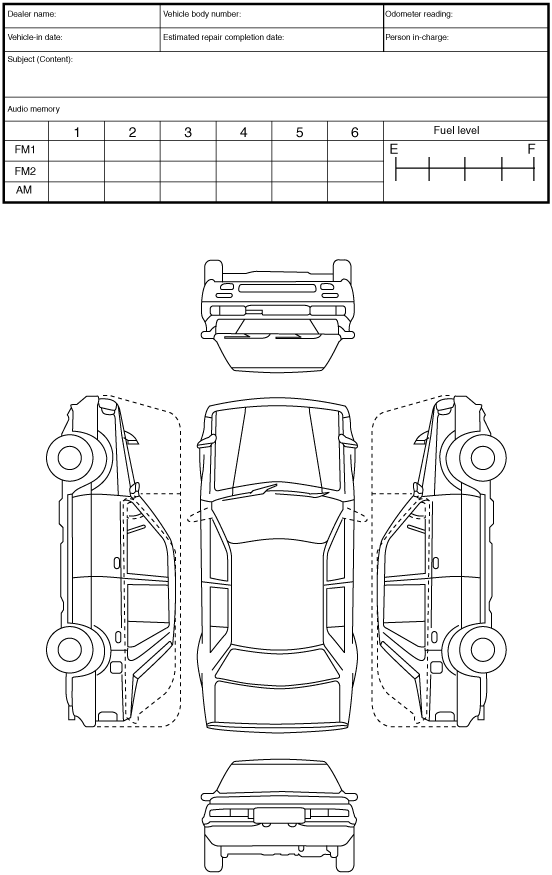

Repair order form

am2zzw00014787

ac5wzw00003066

Action for Non-repeatable Malfunction

• If the malfunction does not recur, verify the malfunction cause by performing the following actions:

― Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.

― Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for occurrence of any malfunction or DTCs.

aaxjjw00007274

― Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)

Note

• SST (Reference): PROBE KIT (49US 15 1A0)

amxzzw00004455
