CLUTCH COVER INSPECTION [F66M-R]

id0510q2157400

1.  Remove the clutch cover. (See CLUTCH UNIT REMOVAL/INSTALLATION [F66M-R].)

2.  Perform the following procedure to inspect the clutch cover.

(1)  Measure the wear of the diaphragm spring fingers.

am5uuw00003645

Clutch cover diaphragm spring fingers maximum depth

0.6 mm {0.02 in}

•  If it exceeds the maximum, replace the clutch cover. (See CLUTCH UNIT REMOVAL/INSTALLATION [F66M-R].)

(2)  Measure the flatness of the pressure plate with a straight edge and a feeler gauge.

am3uuw00002093

Maximum clearance of flatness of the pressure plate

0.3 mm {0.01 in}

•  If it exceeds the maximum, replace the clutch cover. (See CLUTCH UNIT REMOVAL/INSTALLATION [F66M-R].)

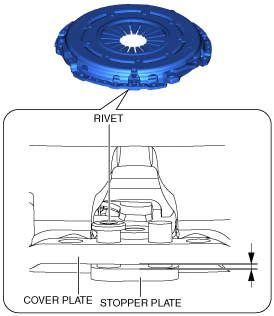

(3)  Measure the clearance between the cover plate and stopper plate. (with SKYACTIV-D 1.5)

am2zzw00011244

1)  Tap the head of the rivet with a plastic hammer.

2)  Using a thickness gauge, measure the clearance between the cover plate and stopper plate.

Cover plate and stopper plate minimum clearance

2.0 mm {0.079 in}

•  If it is less than the minimum, replace the clutch cover. (See CLUTCH UNIT REMOVAL/INSTALLATION [F66M-R].)

(4)  Inspect the diaphragm spring fingers for the degree of uniformity in their high.

am3uuw00002094

1)  Install the clutch cover. (See CLUTCH UNIT REMOVAL/INSTALLATION [F66M-R].)

2)  When checking the diaphragm spring fingers, mount a dial gauge on the cylinder block.

3)  Rotate the flywheel and check for misaligned diaphragm spring fingers.

Clutch cover diaphragm spring fingers maximum height difference

1.0 mm {0.039 in}

•  If it exceeds the maximum, replace the clutch cover. (See CLUTCH UNIT REMOVAL/INSTALLATION [F66M-R].)
