MANUAL TRANSAXLE OIL INSPECTION [F65M-R]

id0515n1159600

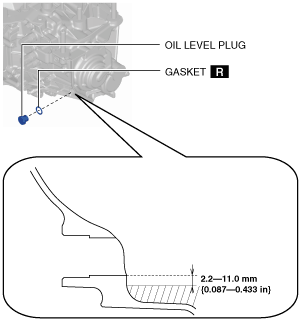

1.  Park the vehicle on level ground.

2.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

3.  Remove the oil level plug and gasket.

am2zzw00010014

4.  Verify that the manual transaxle oil is within the range shown in the figure.

•  If it is not within the range, adjust the manual transaxle oil level.

Manual transaxle oil grade

Manual transaxle oil viscosity
API service GL-4
SAE 75W-80

5.  Install a new gasket and the oil level plug.

Tightening torque
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}

6.  Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
