DIFFERENTIAL [F65M-R]

id0515n1284200

Purpose, Function

• The differential absorbs the rotation speed of the inside and outside wheel of a wheel set when the vehicle is cornering.

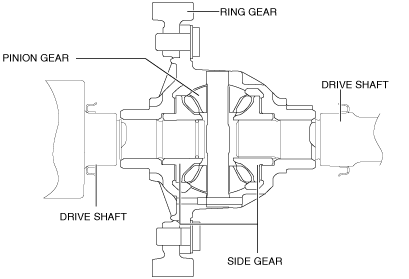

Construction

am2zzn00002475

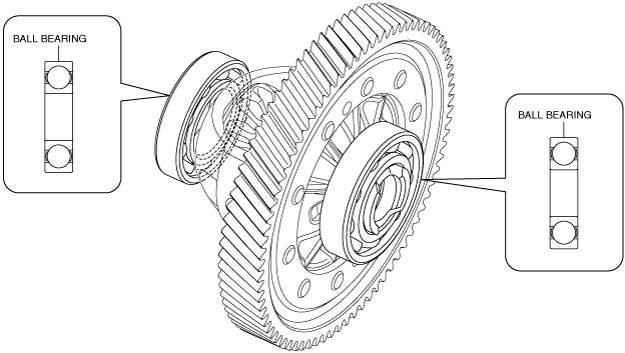

Ball bearing

• The differential has adopted ball bearings at the locations shown in the figure, reducing rotational friction resistance of the differential.

am2zzn00002476

Operation

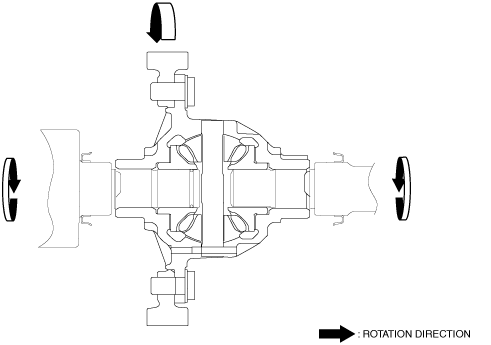

Driving in a straight line

am2zzn00002477

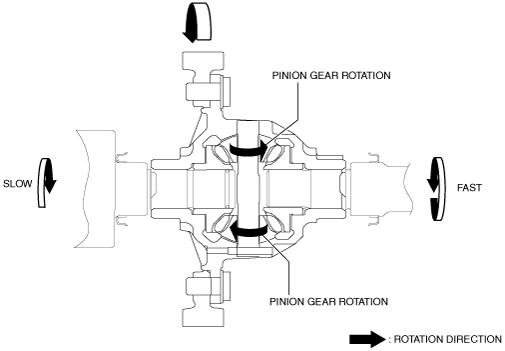

Cornering

am2zzn00002478
