NEUTRAL SWITCH REMOVAL/INSTALLATION [F66M-R]

id0515n2159800

SKYACTIV-G 1.5

Neutral switch No.1

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

3.  Remove in the order indicated in the table.

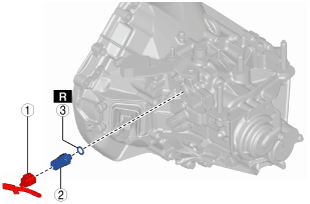

am2zzw00014106

1	Neutral switch No.1 connector
2	Neutral switch No.1
3	Gasket

4.  Install in the order indicated in the table.

Note

•  White marking tape is adhered to the neutral switch No.2 connector. Verify that it is correctly installed as shown in the figure. (with i-stop)

am2zzw00010030

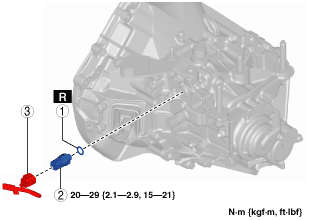

am2zzw00014107

1	Gasket
2	Neutral switch No.1
3	Neutral switch No.1 connector

5.  Install the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

6.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

Neutral switch No.2 (with i-stop)

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

3.  Remove in the order indicated in the table.

am2zzw00014108

1	Neutral switch No.2 connector (with white marking tape)
2	Neutral switch No.2
3	Gasket

4.  Install in the order indicated in the table.

Note

•  White marking tape is adhered to the neutral switch No.2 connector. Verify that it is correctly installed as shown in the figure.

am2zzw00010030

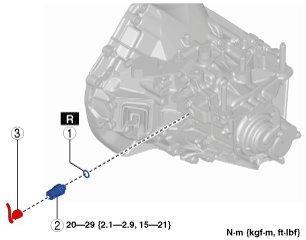

am2zzw00014109

1	Gasket
2	Neutral switch No.2
3	Neutral switch No.2 connector (with white marking tape)

5.  Install the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 1.3, SKYACTIV-G 1.5].)

6.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

SKYACTIV-D 1.5

Neutral switch No.1

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

3.  Remove in the order indicated in the table.

am2zzw00014110

1	Neutral switch No.1 connector
2	Neutral switch No.1
3	Gasket

4.  Install in the order indicated in the table.

am2zzw00014111

1	Gasket
2	Neutral switch No.1
3	Neutral switch No.1 connector

5.  Install the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

6.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

Neutral switch No.2

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

3.  Remove in the order indicated in the table.

am2zzw00014112

1	Neutral switch No.2 connector
2	Neutral switch No.2
3	Gasket

4.  Install in the order indicated in the table.

am2zzw00014109

1	Gasket
2	Neutral switch No.2
3	Neutral switch No.2 connector

5.  Install the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 1.5].)

6.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
