• The shift position indication displays the selector lever range position.
Construction

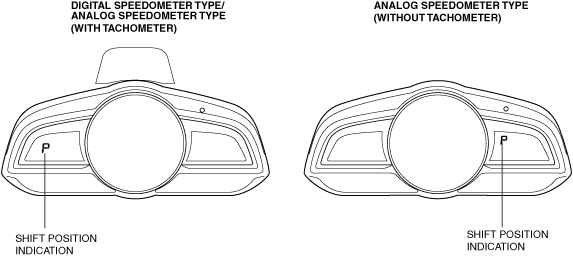

• The shift position indication is built into the instrument cluster.
am2zzn00004719
Operation

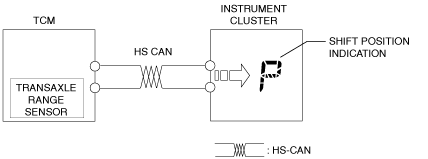

• The TCM sends a shift position indication display request signal to the instrument cluster via CAN based on the signal from the integrated transaxle range sensor.
