POWER STEERING MALFUNCTION INDICATOR LIGHT
id061300245300
Purpose
• The power steering malfunction indicator light warns the driver that there is a malfunction with the electric power steering (EPS) system.
Function
• If there is a malfunction in the EPS system, the power steering malfunction indicator light illuminates.
• If the EPS system and CAN lines are normal, it illuminates when the ignition is switched ON (engine off), and turns off after the engine is started.
Construction

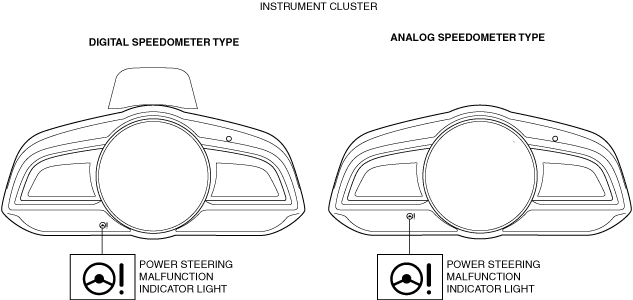

• The power steering malfunction indicator light is built into the instrument cluster.
Operation
EPS system malfunction detection
-
• If the EPS control module (CM) detects a system malfunction, it sends a power steering malfunction indicator light illumination on request signal to the instrument cluster via CAN.
• The instrument cluster illuminates the power steering malfunction indicator light when it receives a power steering malfunction indicator light illumination on request signal.
-
Note
-
• A warning message in the center display is displayed with the power steering malfunction indicator light turned on or flashed. For the message content and verification method, refer to the [CENTER DISPLAY (WITH CENTER DISPLAY)]. (See
CENTER DISPLAY [WITH CENTER DISPLAY].)
Initial check
-
• If the EPS system and CAN lines are normal, it illuminates when the ignition is switched ON (engine off), and turns off after the engine is started. If there is a system malfunction, the power steering malfunction indicator light illuminates.
Fail-safe
• Function not equipped.
