ELECTRIC POWER STEERING (EPS) MOTOR

id061300245600


Purpose, Function

•  The EPS motor is driven by the control current from the EPS control module (CM) and generates assist torque to manual steering mechanism.

Construction

•  The EPS motor is integrated with the steering column.
•  The EPS motor is a brushless AC motor which consists of a three-phase, star-shaped connection stator, a permanent magnet rotor, and a motor rotation angle sensor.

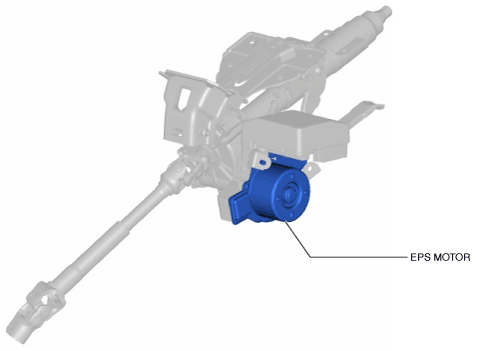

am2zzn00002012

Operation

•  Electrical current from the EPS CM is applied to the stator, and the motor axis integrated with the rotor is rotated.
•  The EPS motor has a motor rotation angle sensor which detects the rotor position, and it outputs a rotor position signal to the EPS CM.
•  The EPS CM switches the current flowing to each stator based on the rotor position signal from the motor rotation angle senor.

Fail-safe

DTC No.

Fail-safe function
C200D:49
•  Control disabled/Control is maintained in the backup control
•  Power steering malfunction indicator light: Illuminated
U2011:49
U2011:61
•  Control disabled
•  Power steering malfunction indicator light: Illuminated
