STEERING GEAR AND LINKAGE DISASSEMBLY
id061300801800
1. Remove the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION.)
2. Disassemble in the order indicated in the figure.

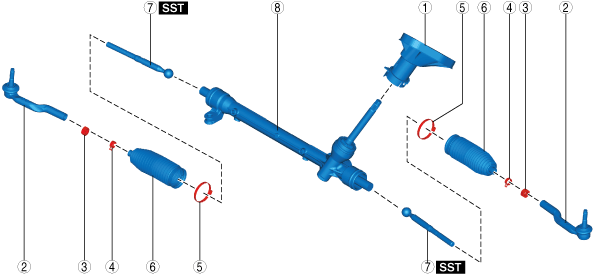

L.H.D.
am2zzw00014125
|

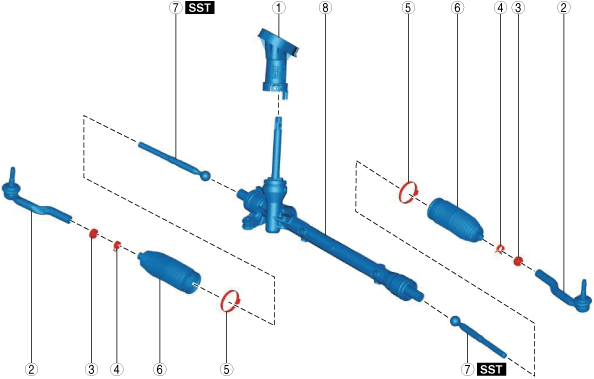

R.H.D.
am2zzw00013932
|
|
1
|
Dust cover
(See Dust Cover Disassembly Note.)
|
|
2
|
Tie-rod end
(See Tie-rod End Disassembly Note.)
|
|
3
|
Locknut
|
|
4
|
Boot clamp
|
|
5
|
Boot band
(See Boot Band Disassembly Note .)
|
|
6
|
Boot
|
|
7
|
Tie Rod
(See Tie Rod Disassembly Note.)
|
|
8
|
Steering gear
|
Dust Cover Disassembly Note
1. Disengage the dust cover tabs shown in the figure from the steering gear.
am2zzw00008183
|
2. Remove the dust cover from the steering gear.
Tie-rod End Disassembly Note
1. Place alignment marks as shown in the figure for proper installation.
am2zzw00008136
|
2. Remove the tie-rod end.
am2zzw00008137
|
Boot Band Disassembly Note
1. Insert a flathead screwdriver into the crimped part of the boot band, expand the crimped part and remove the boot band.
am2zzw00008163
|
Tie Rod Disassembly Note

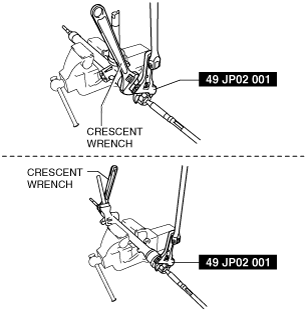

1. Lock the steering rack end (pinion gear side) against rotation using a crescent wrench and remove the tie rod using the SST.
am2zzw00014871
|
