SYMPTOM TROUBLESHOOTING SYSTEM WIRING DIAGRAM [MANUAL AIR CONDITIONER]

id0703c2700200

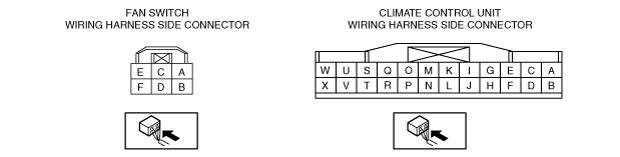

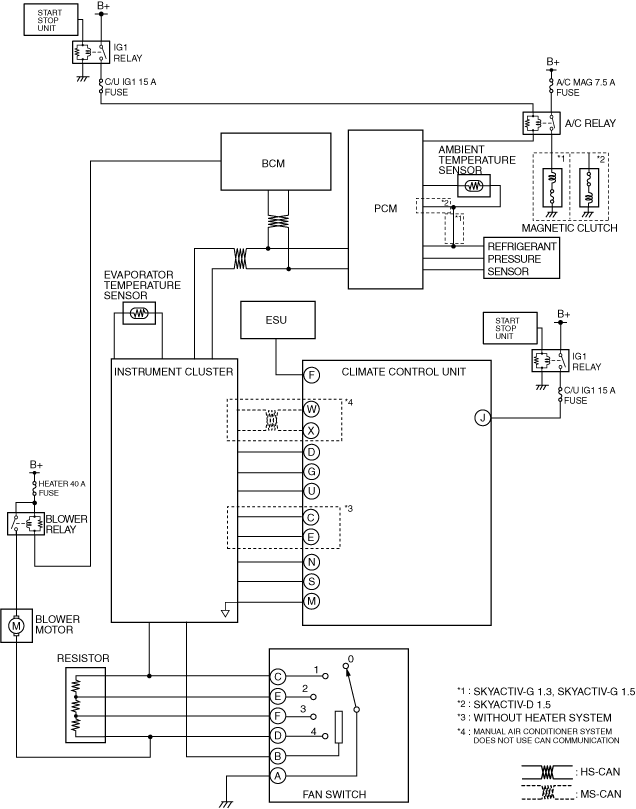

Climate Control Unit With RECIRCULATE/FRESH Lever Type

am2zzn00004536

ac3wzw00002473

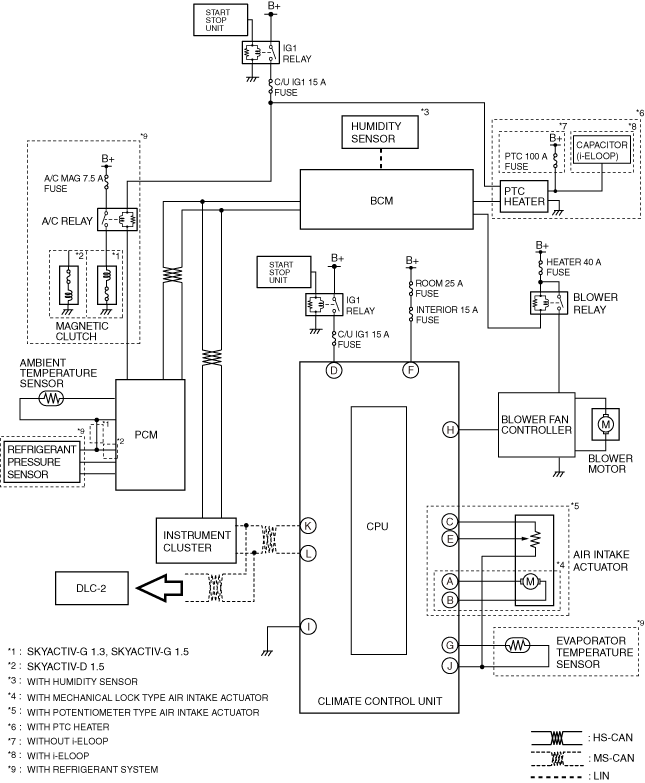

Climate Control Unit With RECIRCULATE/FRESH Switch Type

am2zzn00004537

am3zzw00017782
