•  The evaporator circulates low temperature, low pressure gaseous refrigerant inside the evaporator.

•  The evaporator consists of the tube which passes refrigerant and the heat radiation fins.

am2zzn00002111

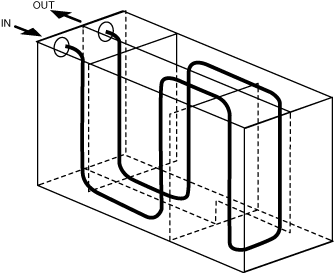

•  The cooling medium flow pattern shown in the figure has been adopted for the evaporator.

am2zzn00003952

•  For the evaporator operation, refer to the REFRIGERANT SYSTEM. (See REFRIGERANT SYSTEM.)
