REFRIGERANT LINE
id071100002400
Purpose
• The refrigerant lines connect each of the parts in the refrigerant cycle.
Construction

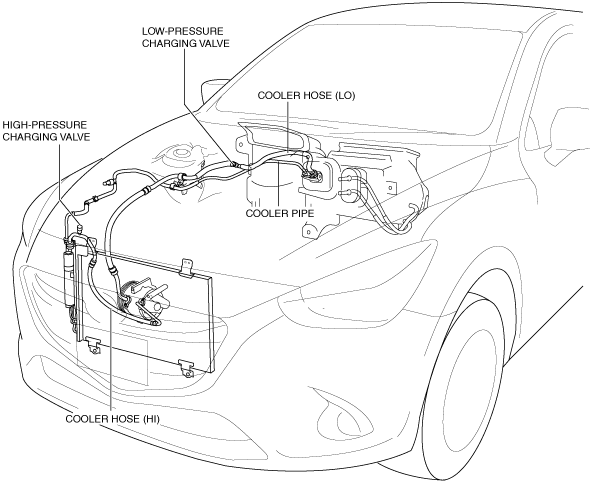

SKYACTIV-G 1.3, SKYACTIV-G 1.5
-
• Block-type piping has been adopted to the pipe connection, improving the efficiency of the removal/installation related servicing.
• The pipes in the piping system consist of the following parts.
-
― Cooler hose (HI)
― Cooler hose (LO)
― Cooler pipe
-
• The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).
• A high-pressure charging valve is located on the cooler hose (HI) and a low-pressure charging valve is located on the cooler hose (LO).

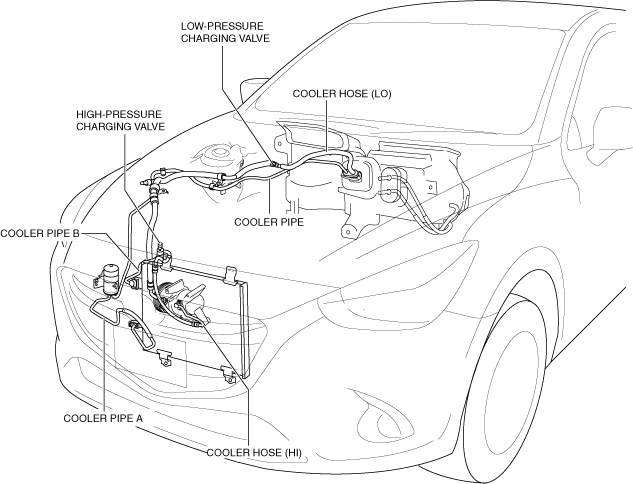

SKYACTIV-D 1.5
-
• Block-type piping has been adopted to the pipe connection, improving the efficiency of removal/installation related servicing.
• The pipes in the piping system consist of the following parts.
-
― Cooler hose (HI)
― Cooler hose (LO)
― Cooler pipe
― Cooler pipe A
― Cooler pipe B
-
• The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).
• A high-pressure charging valve is located on the cooler hose (HI) and a low-pressure charging valve is located on the cooler hose (LO).
Fail-safe
• Not applicable
