RESISTOR REMOVAL/INSTALLATION

id071100016300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Disconnect the resistor connector.

am2zzw00009572

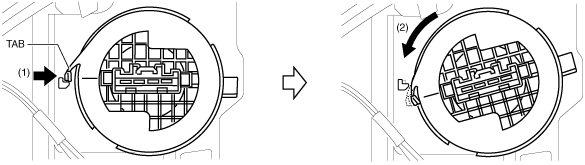

4.  Rotate the resistor (2) while pressing the tab (1).

ac5wzw00001901

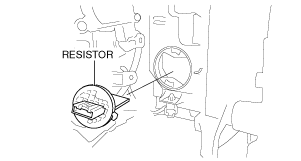

5.  Remove the resistor.

am2zzw00009573

6.  Install in the reverse order of removal.
