BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600

With Mechanical Lock Type Air Intake Actuator

1.  Disassemble in the order indicated in the table.

Caution

•  If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

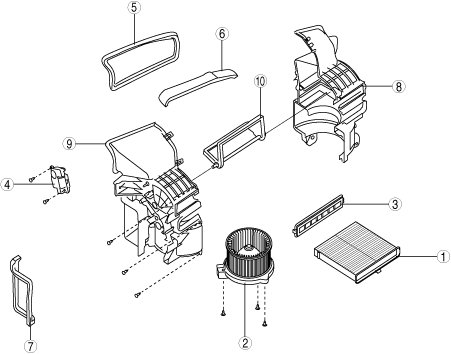

ac3wzw00002546

1	Air filter
2	Blower motor
3	Cover
4	Air intake actuator
5	Polyurethane A
6	Polyurethane B
7	Polyurethane C
8	Blower case A
9	Blower case B
10	Air intake door

2.  Assemble in the reverse order of disassembly.

With Potentiometer Type Air Intake Actuator

1.  Disassemble in the order indicated in the table.

Caution

•  If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

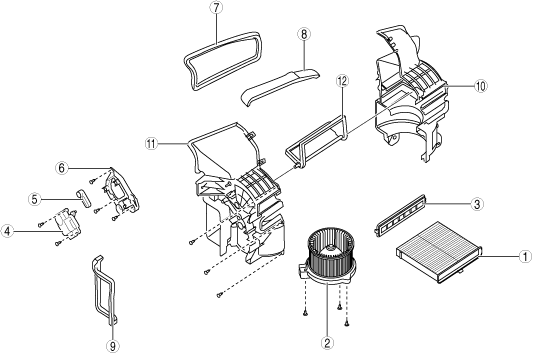

ac3wzw00002545

1	Air filter
2	Blower motor
3	Cover
4	Air intake actuator
5	Air intake link
6	Bracket
7	Polyurethane A
8	Polyurethane B
9	Polyurethane C
10	Blower case A
11	Blower case B
12	Air intake door

2.  Assemble in the reverse order of disassembly.

Manual Air Conditioner (With RECIRCULATE/FRESH Lever Type)

1.  Disassemble in the order indicated in the table.

Caution

•  If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

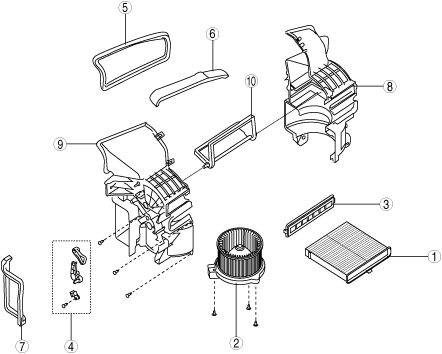

ac3wzw00002547

1	Air filter
2	Blower motor
3	Cover
4	Air intake link
5	Polyurethane A
6	Polyurethane B
7	Polyurethane C
8	Blower case A
9	Blower case B
10	Air intake door

2.  Assemble in the reverse order of disassembly.
