FULL-AUTO AIR CONDITIONER SYSTEM [FULL-AUTO AIR CONDITIONER]

id0740a1004000

Outline

―  Airflow temperature control

―  Airflow volume control

―  Airflow mode control

―  Air intake control

―  A/C compressor control

―  Air conditioner i-stop control (With i-stop)

Function

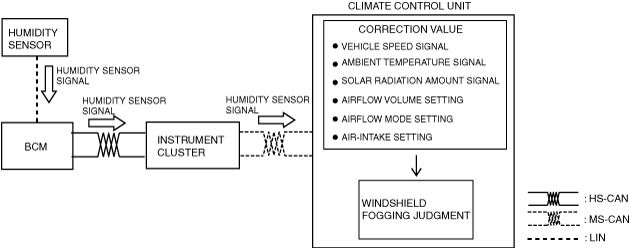

•  The climate control unit perform the windshield fogging judgment based on the signal from the humidity sensor and applies the calculated correction value from the each signal.

ac3wzn00001142

Airflow temperature control

•  The airflow temperature control operates the air mix actuator and switches the air mix door position in conjunction with the airflow temperature setting and the vehicle conditions.

Airflow volume control

•  The airflow volume control changes the blower motor control speed and switches the airflow volume in conjunction with the airflow volume setting and the vehicle conditions.

Airflow mode control

•  The airflow mode control operates the airflow mode actuator and switches the airflow mode door position in conjunction with the airflow mode setting and the vehicle conditions.

Air intake control

•  The air intake control operates the air intake actuator and switches the air intake door position in conjunction with the air intake setting and the vehicle conditions.

A/C compressor control

•  The A/C compressor control sends the A/C signal to the PCM based on the climate control unit operation and signals from each sensor.

Air conditioner i-stop control (With i-stop)

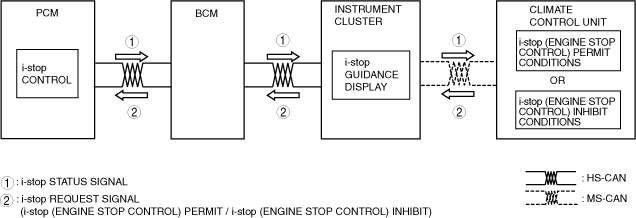

•  The climate control unit determines i-stop control (engine stop control) according to the operation condition of the air conditioner system and sends i-stop (engine stop control) request signals to the PCM.

am2zzn00004527

•  The climate control unit controls the air mix actuator according to the change in the airflow temperature passing through the heater core or the evaporator during i-stop operation (engine stop control) as follows and corrects the airflow temperature.

―  If airflow temperature passing through heater core decreases, air mix actuator is opened in HOT direction

―  If airflow temperature passing through evaporator increases, air mix actuator is opened in COLD direction

Caution

•  Occupants may hear the sound of the air mix actuator operating because there is no engine sound during the i-stop operation (engine stop control). The airflow temperature control is performed even during i-stop operation (engine stop control), therefore, it does not indicate a system malfunction even if the operation sound of the air mix actuator is heard.

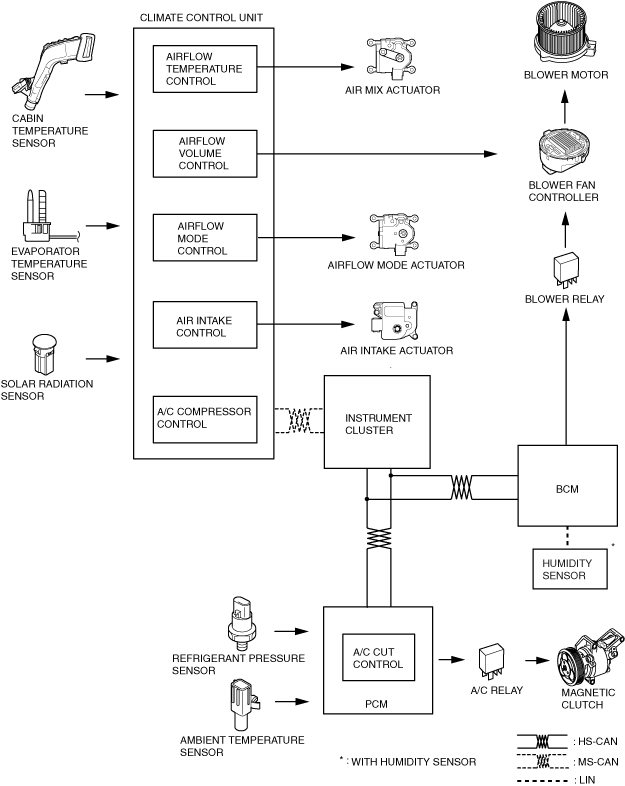

Block Diagram

ac3wzn00000114

System Wiring Diagram

am2zzn00004528

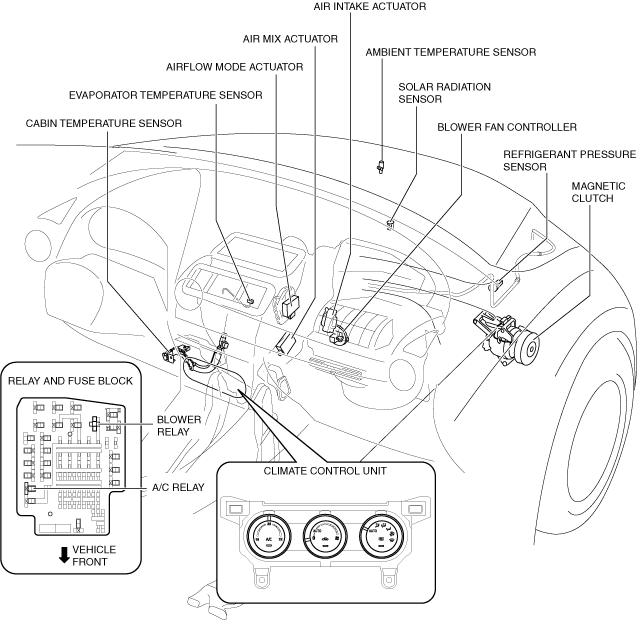

Structural View

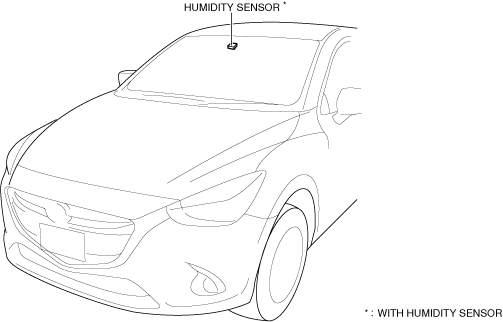

am2zzn00004529

am2zzn00004530

Operation

Airflow temperature control

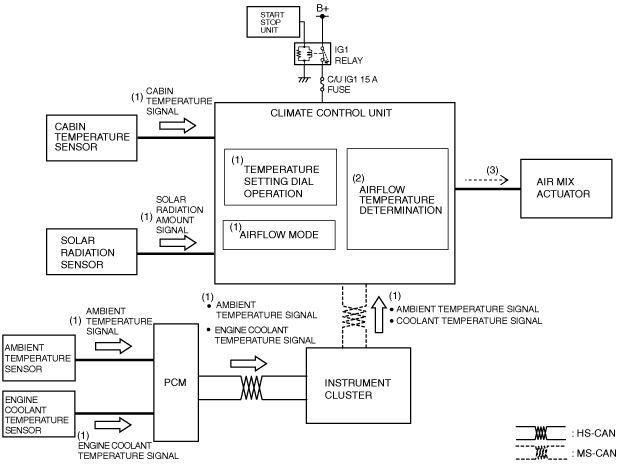

1.  The climate control unit performs airflow temperature determination (2) based on the signals (1) from each sensor which change according to the temperature setting dial operation and the vehicle conditions when the ignition is switched ON (engine off or on).

2.  The climate control unit drives (3) the air mix actuator based on the results of the airflow temperature determination and corrections.

ac3wzn00000117

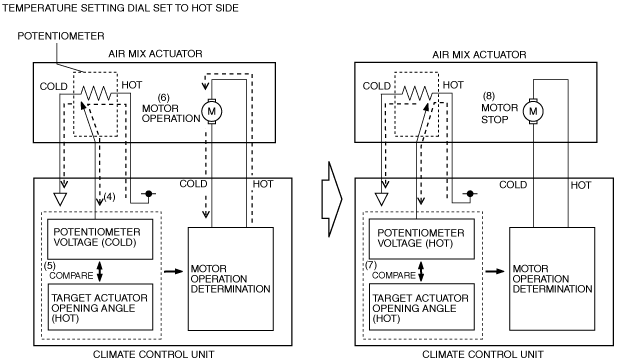

3.  The climate control unit detects the current air mix actuator opening angle based on the potentiometer voltage (4).

4.  The climate control unit compares the target actuator opening angle with the voltage from the potentiometer.

5.  When the potentiometer voltage value differs from the target actuator opening angle, the climate control unit drives (6) the air mix actuator motor.

6.  When the potentiometer voltage value matches (7) the target actuator opening angle, the climate control unit stops (8) the air mix actuator motor.

ac3wzn00000118

Airflow volume control

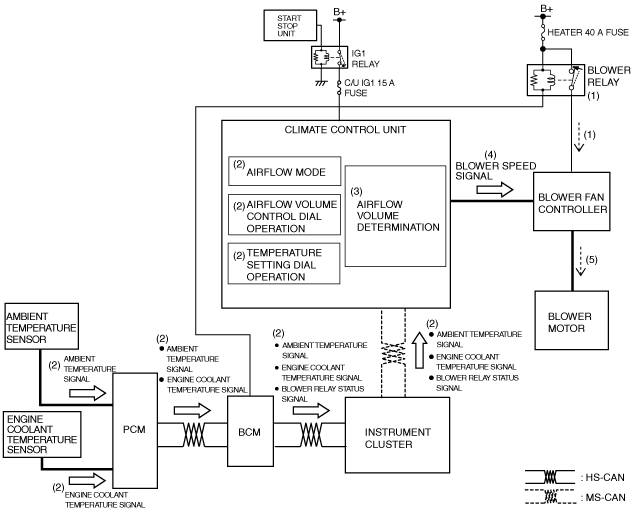

1.  When the ignition is switched ON (engine off or on), the BCM turns the blower relay on (1).

2.  When the blower relay turns on, the blower fan controller goes on operation standby.

3.  The climate control unit performs airflow volume determination (3) based on the operation of the airflow volume control dial and the temperature setting dial, the airflow mode condition, and the signals from each sensor when the ignition is switched ON (engine off or on).

4.  The climate control unit sends a blower speed signal (4) to the blower fan controller based on the results of the airflow volume determination and the corrections.

5.  The blower fan controller operates (5) the blower motor based on the blower speed signal.

ac3wzn00000119

Airflow mode control

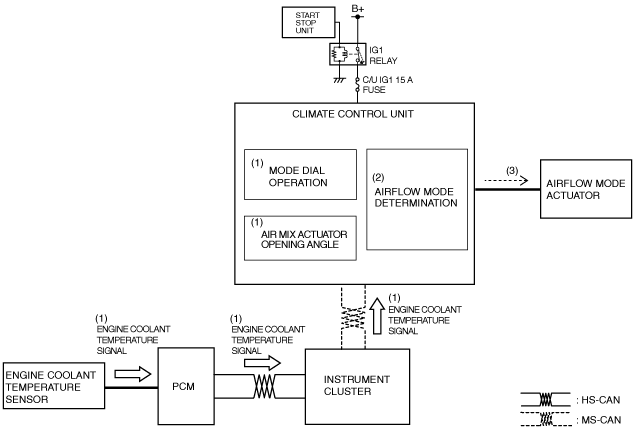

1.  The climate control unit performs airflow mode determination (2) based on the signals (1) from each sensor which change according to the MODE dial operation and the vehicle conditions when the ignition is switched ON (engine off or on).

2.  The climate control unit drives (3) the airflow mode actuator based on the results of the airflow mode determination and corrections.

ac3wzn00000120

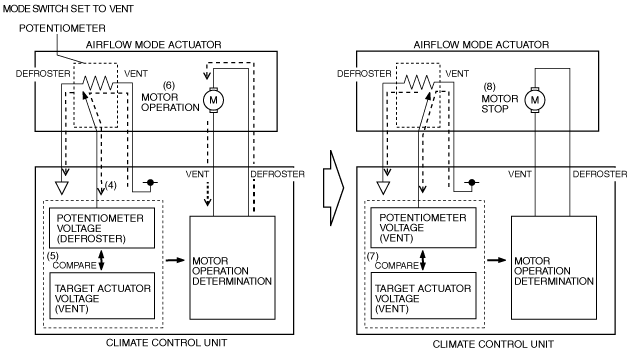

3.  The climate control unit detects the current airflow mode actuator opening angle based on the potentiometer voltage (4).

4.  The climate control unit compares the target actuator voltage value with the voltage from the potentiometer.

5.  When the potentiometer voltage value differs from the target actuator voltage value, the climate control unit drives (6) the airflow mode actuator motor.

6.  When the potentiometer voltage value matches (7) the target actuator voltage value, the climate control unit stops (8) the airflow mode actuator motor.

ac3wzn00000121

Air intake control (mechanical lock type air intake actuator)

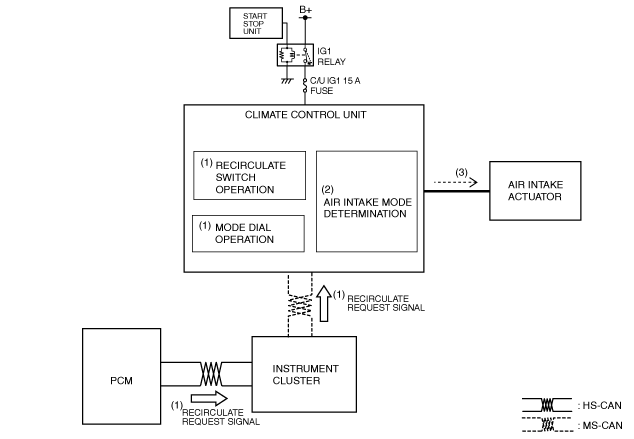

1.  The climate control unit performs air intake mode determination (2) based on the signals (1) from the operation of the RECIRCULATE switch and the MODE dial and the PCM when the ignition is switched ON (engine off or on).

2.  The climate control unit drives (3) the air intake actuator for a specified time based on the results of the air intake mode determination and corrections.

ac3wzn00000122

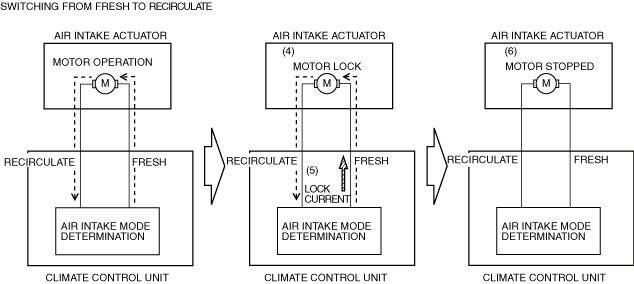

3.  When the air intake actuator moves to FRESH or REC, the motor locks (4).

4.  When the motor locks and is under excessive load, the current value flowing from the climate control unit increases more than the specification (lock current).

5.  When the lock current (5) is detected, the climate control unit stops the motor drive signal (6) to the air intake actuator.

ac3wzn00001145

Air intake control (potentiometer type air intake actuator)

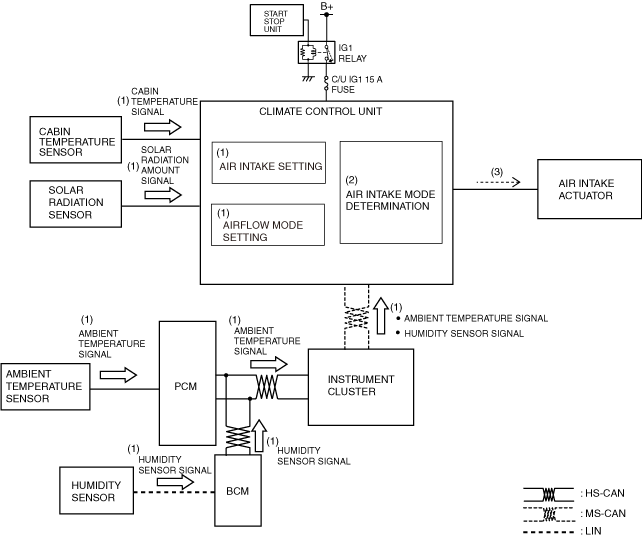

1.  The climate control unit performs air intake mode determination (2) based on the signals (1) from the air intake setting and the vehicle conditions when the ignition is switched ON (engine off or on).

2.  The climate control unit drives the air intake actuator (3) according to the result of the air intake mode determination and corrections.

am2zzn00004531

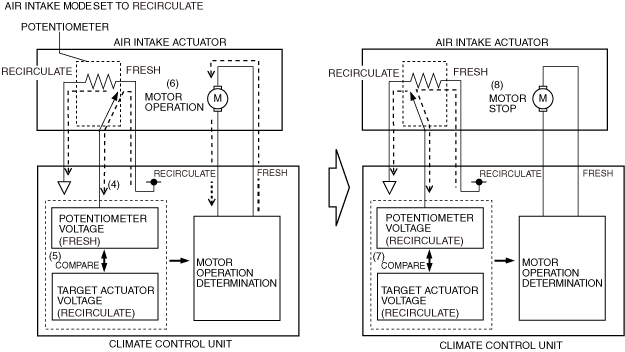

3.  The climate control unit detects the current air intake actuator opening angle based on the potentiometer voltage (4).

4.  The climate control unit compares (5) the target actuator voltage value with the voltage from the potentiometer.

5.  When the potentiometer voltage value differs from the target actuator voltage value, the climate control unit drives (6) the air intake actuator motor.

6.  When the potentiometer voltage value matches (7) the target actuator voltage value, the climate control unit stops (8) the air intake actuator motor.

ac3wzn00001147

A/C compressor control

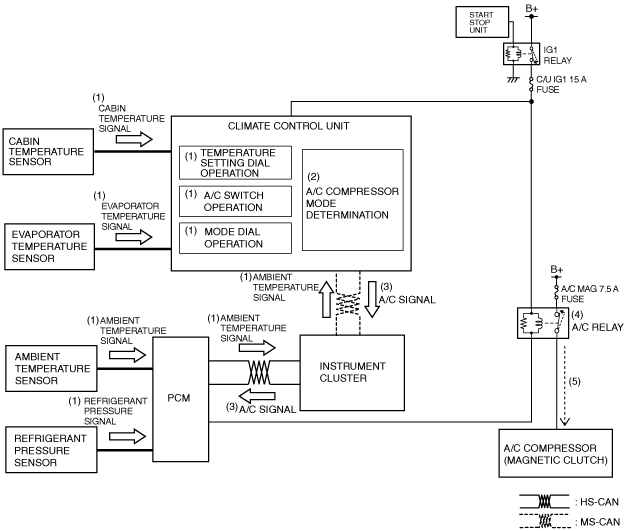

1.  The climate control unit performs A/C compressor mode determination (2) based on the signals (1) from each sensor which change according to each switch/dial operation and the vehicle conditions when the ignition is switched ON (engine off or on).

2.  The climate control unit sends (3) the A/C signal to the PCM according to the result of the A/C compressor mode determination and corrections.

3.  The PCM turns the A/C relay on (4) based on the signals from each sensor which change according to the A/C signal and the vehicle conditions.

4.  When the A/C relay turns on, the magnetic clutch turns on (5).

ac3wzn00000123

Air conditioner i-stop control (With i-stop)

i-stop (engine stop control) request control (i-stop inhibit/i-stop permit)

•  The climate control unit sends an i-stop inhibit or permit request signal to the PCM according to the operation conditions of the air conditioner system.

•  If any of the following i-stop inhibit conditions is met, the climate control unit sends an i-stop inhibit request signal to the PCM.

i-stop inhibit conditions

•  When all of the i-stop inhibit conditions are met, the climate control unit sends an i-stop permit request signal to the PCM.

Air conditioner system control during i-stop (engine-stop control)

•  When the climate control unit determines an engine-stop condition based on the i-stop condition signal sent from the PCM, it starts the air conditioner system control when the engine is stopped.

•  When the engine is stopped by the i-stop control, the climate control unit stops the air intake actuator at the current position.

Note

•  If the engine is stopped by the i-stop control with the A/C switch turned on, the indicator on the A/C switch is kept turned on.

•  Based on the following signals, the climate control unit calculates the engine coolant temperature correction value for the engine-stop condition by i-stop control.

―  Engine coolant temperature signal at moment engine is stopped which is sent from PCM via CAN communication

―  Heater core temperature

Recovery to normal air conditioner system control

•  If any of the following i-stop inhibit conditions is met during air conditioner system control when the engine is stopped, the climate control unit sends an engine re-start request signal to the PCM.

•  After sending an engine restart request signal, the climate control unit returns to normal air conditioner system control when the engine is restarted.
