AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1801400

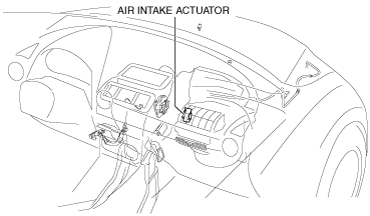

Installation position

ac3wzw00000909

Caution

•  If a non-specified grease is used, it may result in abnormal noise or an operation malfunction of the links. Use only a grease coating agent on each link and do not wipe off or add additional grease.

With Mechanical Lock Type Air Intake Actuator

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Disconnect the air intake actuator connector.

ac3wzw00002550

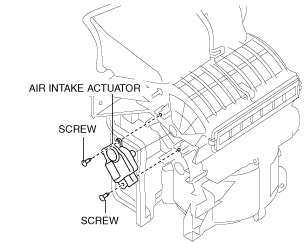

4.  Remove the screws.

am2zzw00009628

5.  Remove the air intake actuator.

6.  Install in the reverse order of removal.

With Potentiometer Type Air Intake Actuator

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

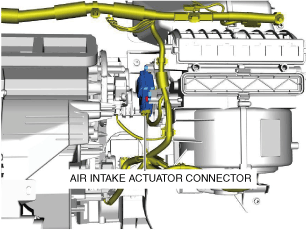

3.  Disconnect the air intake actuator connector.

ac3wzw00002548

4.  Remove the screws.

ac3wzw00002549

5.  Remove the air intake actuator.

6.  Install in the reverse order of removal.
