AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER]
id0740a1801700
1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)
3. Remove the airflow mode actuator. (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER].)

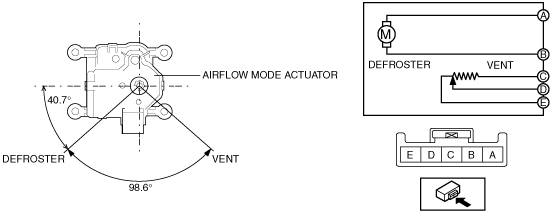

4. Apply battery positive voltage and connect the ground to the airflow mode actuator terminals as indicated in the table below and verify the operation condition.
|
B+ Terminal |
Ground Terminal |
Operation |
|---|---|---|
|
A
|
B
|
DEFROSTER → VENT
|
|
B
|
A
|
VENT → DEFROSTER
|
am2zzw00012780
|
5. Verify that the resistance between terminals D and E, C and D matches the airflow mode actuator operation as shown in the graph.
am2zzw00013546
|
