CLIMATE CONTROL UNIT DISASSEMBLY/ASSEMBLY [MANUAL AIR CONDITIONER]
id0740a2802000
L.H.D. (RECIRCULATE/FRESH lever type)

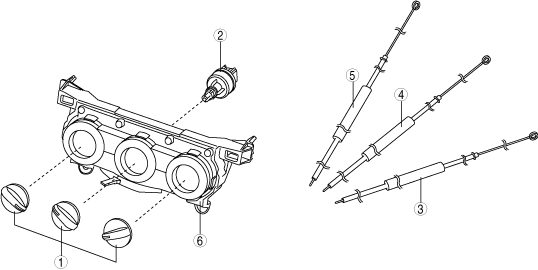

1. Disassemble in the order indicated in the figure.
am2zzw00014043
|
|
1
|
Dial
|
|
2
|
Fan switch
|
|
3
|
Air mix wire
(See Wire removal note.)
|
|
4
|
Airflow mode wire
(See Wire removal note.)
|
|
5
|
Air intake wire
(See Wire removal note.)
|
|
6
|
Climate control unit
|
2. Assemble in the reverse order of disassembly.

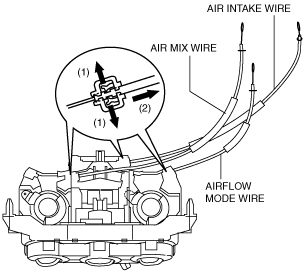

Wire removal note
1. Remove in the order indicated in the figure.
am2zzw00009667
|
L.H.D. (RECIRCULATE/FRESH switch type)

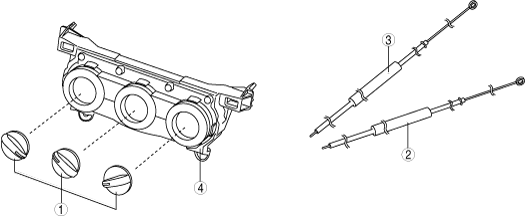

1. Disassemble in the order indicated in the figure.
am2zzw00014044
|
|
1
|
Dial
|
|
2
|
Air mix wire
(See Wire removal note.)
|
|
3
|
Airflow mode wire
(See Wire removal note.)
|
|
4
|
Climate control unit
|
2. Assemble in the reverse order of disassembly.
Wire removal note
1. Remove in the order indicated in the figure.
am2zzw00009669
|
R.H.D. (RECIRCULATE/FRESH lever type)

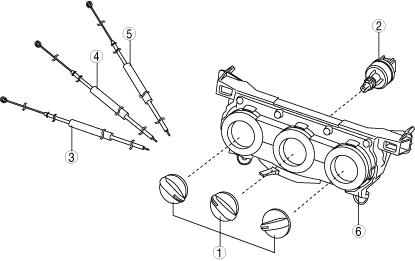

1. Disassemble in the order indicated in the figure.
am2zzw00014045
|
|
1
|
Dial
|
|
2
|
Fan switch
|
|
3
|
Air mix wire
(See Wire removal note.)
|
|
4
|
Airflow mode wire
(See Wire removal note.)
|
|
5
|
Air intake wire
(See Wire removal note.)
|
|
6
|
Climate control unit
|
2. Assemble in the reverse order of disassembly.

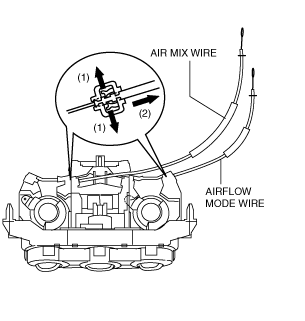

Wire removal note
1. Remove in the order indicated in the figure.
am2zzw00009671
|
R.H.D. (RECIRCULATE/FRESH switch type)

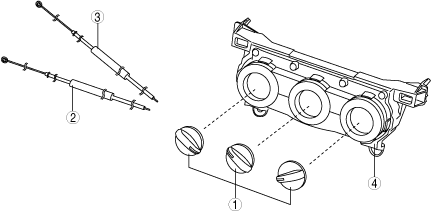

1. Disassemble in the order indicated in the figure.
am2zzw00014046
|
|
1
|
Dial
|
|
2
|
Air mix wire
(See Wire removal note.)
|
|
3
|
Airflow mode wire
(See Wire removal note.)
|
|
4
|
Climate control unit
|
2. Assemble in the reverse order of disassembly.

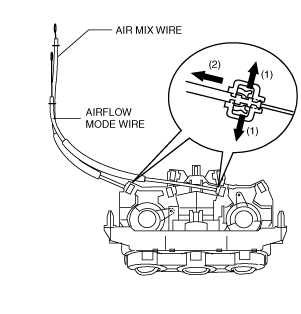

Wire removal note
1. Remove in the order indicated in the figure.
am2zzw00009673
|
