INSPECTION OF SST (DEPLOYMENT TOOL) [STANDARD DEPLOYMENT CONTROL SYSTEM]

id0810b2801000

1.  Before using the SST (49 H066 002), inspect its operation.

am3zzw00011088

Inspection Procedure

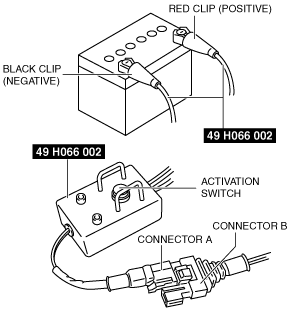

1.  Follow the steps below to inspect the SST (49 H066 002).

ac5uuw00002528

•  If not as indicated in the table, replace the SST (49 H066 002) because it has a malfunction.

Warning

•  Do not use a malfunctioning SST (49 H066 002), otherwise it could cause the air bag module or pre-tensioner seat belt to accidentally operate (deploy).

Caution

•  Because the permissible voltage for the SST (49 H066 002) is 12 V, do not connect a 24 V power source because it will damage the SST. Always connect only a 12 V power source.

Step	Inspection procedure	Light condition
		Green	Red
1	Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.	On	Off
2	Connect connectors A and B.	Off	On
3	Press the activation switch.	On	Off
