FRONT BUMPER DISASSEMBLY/ASSEMBLY

id091000800400

1.  Remove the front fog lights. (with front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

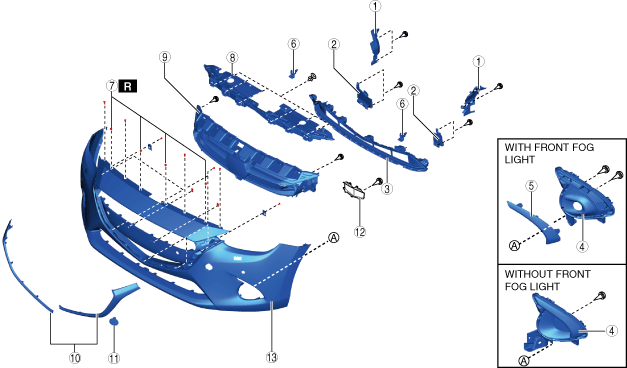

am2zzw00013557

1	Seal plate
2	Bumper mesh cover (with bumper mesh cover)
3	Bumper mesh
4	Front fog light cover (with front fog light) Front fog light hole cover (without front fog light)
5	Front fog light cover garnish (with front fog light)
6	Locator pin
7	Rivet (See Rivet Removal Note.)
8	Grille bracket
9	Radiator grille
10	Lower grille molding
11	Towing hook cover
12	Center bumper mesh (with center bumper mesh)
13	Front bumper face

3.  Assemble in the reverse order of disassembly.

Rivet Removal Note

1.  When removing the rivet, perform the following procedure:

(1)  Secure the rivet pin from the radiator grille side using needle-nose pliers.

am2zzw00008731

(2)  Use the following drill diameter.

Drill diameter:

4.5 mm {0.18 in}

Caution

•  If an inappropriate drill diameter is used, the front bumper face and the radiator grille may be damaged.

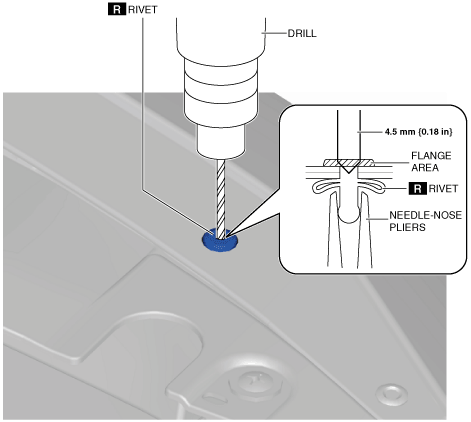

(3)  Remove the rivet flange using a drill and remove the rivet.

adejjw00010507

(4)  Remove any rivet shavings from the front bumper face and the radiator grille.
