BONNET DISASSEMBLY/ASSEMBLY

id091000899800

1.  Disassemble in the order indicated in the table.

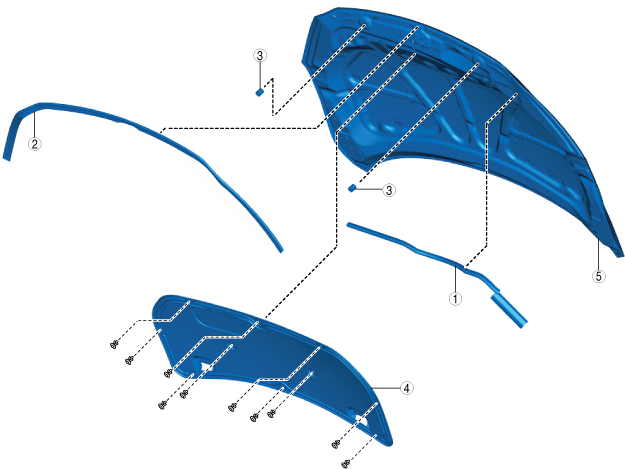

am2zzw00014840

1	Shroud seal weatherstrip
2	Parting seal weatherstrip
3	Stopper rubber
4	Bonnet insulator (with bonnet insulator)
5	Bonnet

2.  Assemble in the reverse order of disassembly.
