REAR DOOR HINGE REMOVAL/INSTALLATION

id091100520800

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear door (See REAR DOOR REMOVAL/INSTALLATION.)

(2)  Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

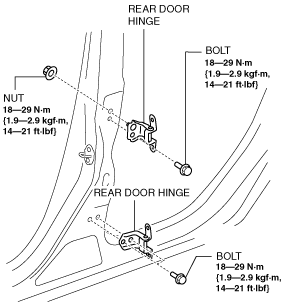

3.  Remove the bolts and nut.

am2zzw00008894

4.  Remove the rear door hinges.

5.  Install in the reverse order of removal.

6.  Adjust the rear door. (See DOOR ADJUSTMENT.)
