POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION

id091200002000

Note

•  The power window main switch is integrated with the power outer mirror switch.

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

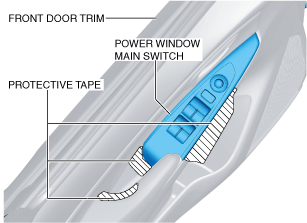

2.  To prevent scratches or damage, affix protective tape to the position shown in the figure of the front door trim.

am2zzw00013080

3.  Insert a remover tool shown in the figure and remove tab A in the direction of arrow (1).

am2zzw00013081

4.  Insert a remover tool shown in the figure and remove tabs B in the direction of arrow (1).

5.  Slide the power window main switch in the direction of arrow (2) shown in the figure and remove tab C.

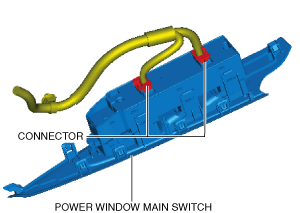

6.  Disconnect the connector.

am2zzw00013082

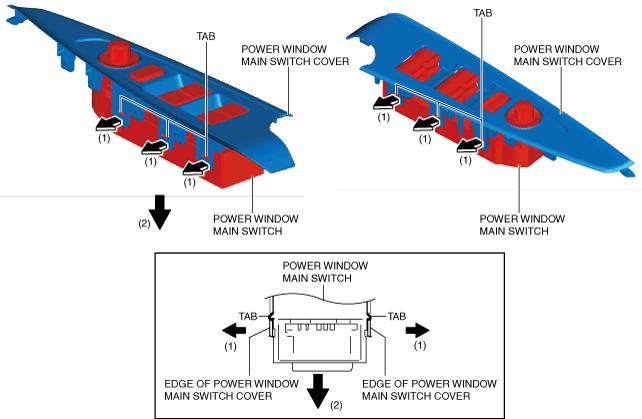

7.  Pull the edge of power window main switch cover in the direction of arrows (1) and detach the tabs.

am2zzw00013083

8.  Remove the power window main switch in the direction of arrow (2) shown in the figure.

9.  Install in the reverse order of removal.
