POWER WINDOW SUBSWITCH INSPECTION

id091200002300

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)

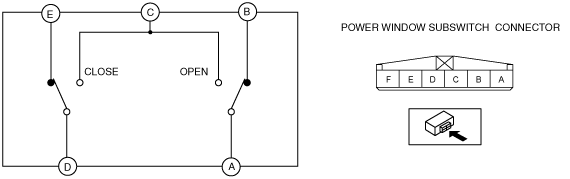

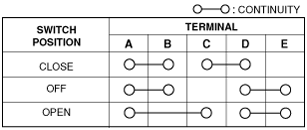

3.  Verify that the continuity is as indicated in the table using a tester.

am2zzw00007804

am3zzw00015840

•  If not as indicated in the table, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
