OUTER MIRROR GLASS INSTALLATION

id091200002900

R.H.D.

Note

am2zzw00013094

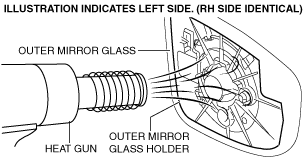

•  Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx. 50°C {90°F} to 60°C {108°F} degrees using a heat gun.

•  Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

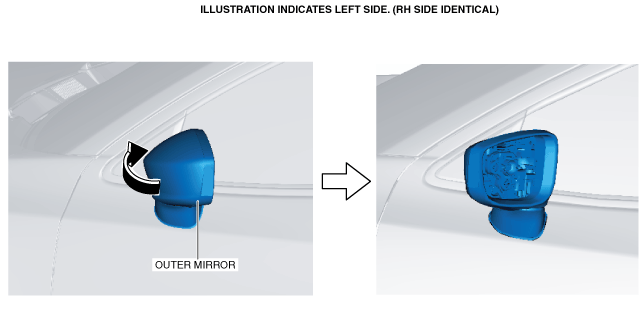

1.  To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of arrow shown in the figure.

am2zzw00013093

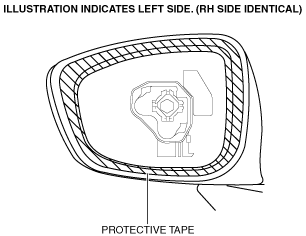

2.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

am2zzw00014008

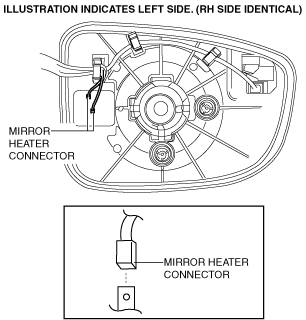

3.  Connect the mirror heater connectors. (with heated outer mirror)

am2zzw00014009

4.  Connect the BSM indicator light connector. (with blind spot monitoring system)

Caution

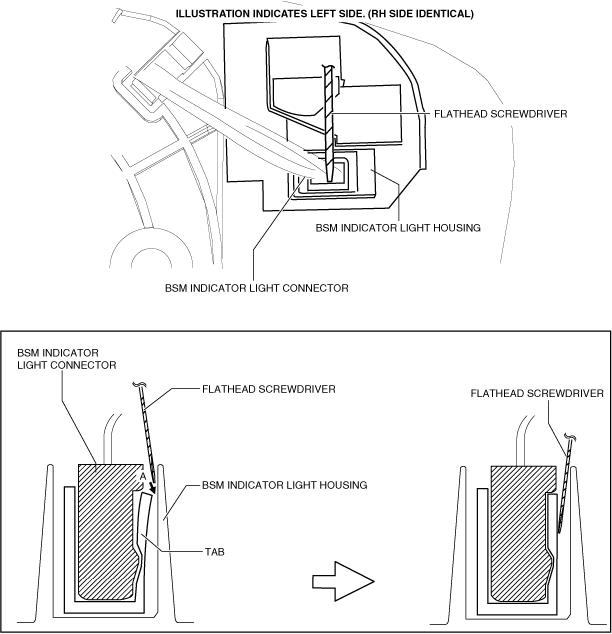

•  Lightly pull the BSM indicator light connector and verify that the BSM indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector. (with blind spot monitoring system)

am2zzw00014010

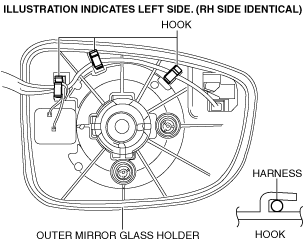

5.  Install the wiring harness for hooks.

am2zzw00014011

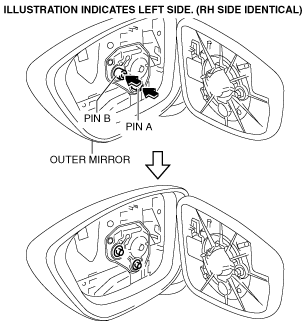

6.  Press in outer mirror pins A and B in the direction of arrows shown in the figure.

am2zzw00013095

Caution

•  If the outer mirror moves when installing the outer mirror glass, the stay could be damaged. When installing the outer mirror glass, use both hands to press together the outer mirror glass and outer mirror.

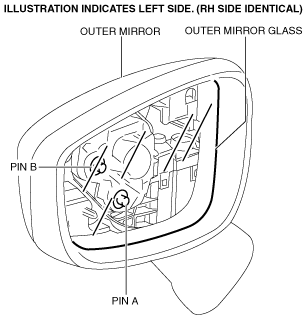

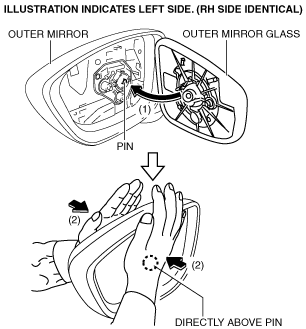

7.  Align the outer mirror glass with the outer mirror in the direction of arrow (1) shown in the figure and while pressing in the direction of arrows (2), install pin.

am2zzw00013096

8.  Install pins A and B in the same way as in Step 6.

am2zzw00013097

9.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

L.H.D.

Note

am2zzw00014012

•  Installation of the outer mirror glass can be facilitated by heating the outer mirror glass holder to approx. 50°C {90°F} to 60°C {108°F} degrees using a heat gun.

•  Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

1.  To facilitate installation of the outer mirror glass, orient the outer mirror in the direction of the arrow shown in the figure.

am2zzw00014013

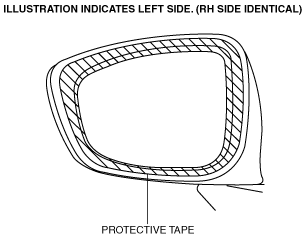

2.  Affix the protective tape to the position shown in the figure to prevent scratches and damage.

am2zzw00014014

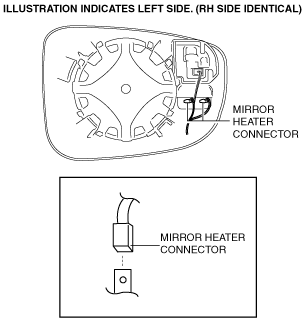

3.  Connect the mirror heater connectors. (with heated outer mirror)

am2zzw00014015

4.  Connect the BSM indicator light connector. (with blind spot monitoring system)

Caution

•  Lightly pull the BSM indicator light connector and verify that the BSM indicator light housing cannot be pulled off. If the connection is poor, insert a tape-wrapped flathead screwdriver into position A shown in the figure and engage the connector. (with blind spot monitoring system)

am2zzw00014010

5.  Install the outer mirror glass to the outer mirror.

6.  Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)
