GLASS/WINDOWS/MIRRORS


id091200012000


Outline

•  A power window system has been adopted with which the door glass can be opened/closed electrically by operating the power window main switch or the power window sub switches.
•  A power outer mirror system has been adopted with which the outer mirrors can be operated remotely using the power outer mirror switch.
•  Outer mirror automatic folding has been adopted which retracts/returns the power outer mirrors in conjunction with the locking/unlocking of the doors. (With outer mirror automatic folding)
•  A rear window defogger has been adopted with which rear window glass fogging can be cleared by pressing the rear window defogger switch.
•  Heated outer mirrors have been adopted which are can remove fogging on the surface of the outer mirrors in conjunction with the rear window defogger. (With heated outer mirrors)

Glass/window/mirror specification


Dark glass
Green glass
Windshield
×*
Front door glass
×*
Rear door glass
×*
×*
Rear window glass
×*
×*

*  :Availability depends on vehicle specification.

Structural View

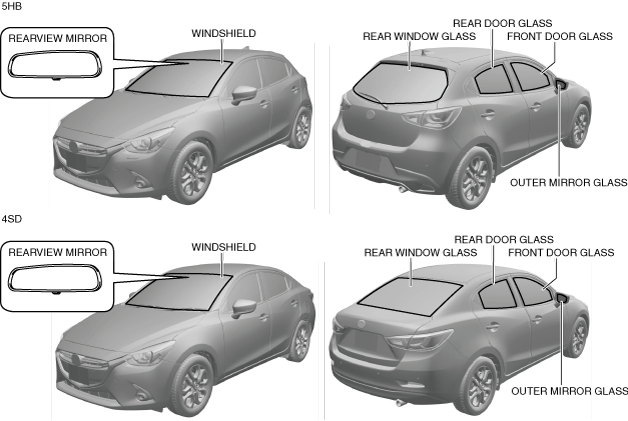

Glass/window/mirror

am2zzn00004663

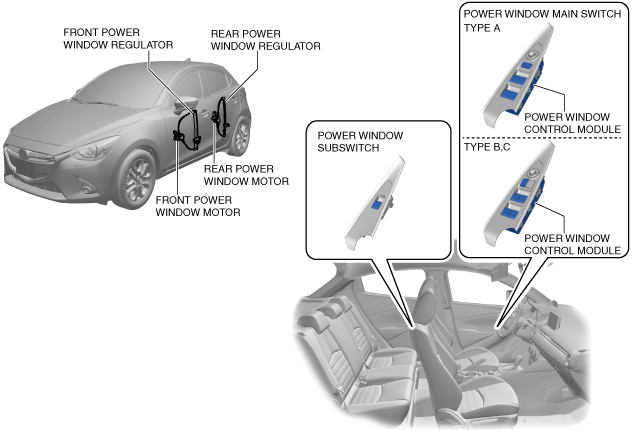

Power window system

am2zzn00004664

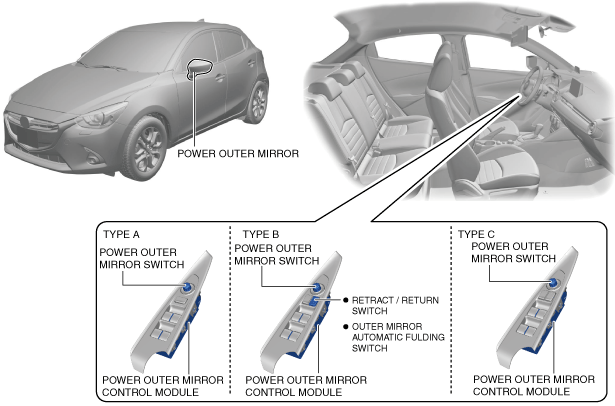

Power outer mirror system

am2zzn00004665

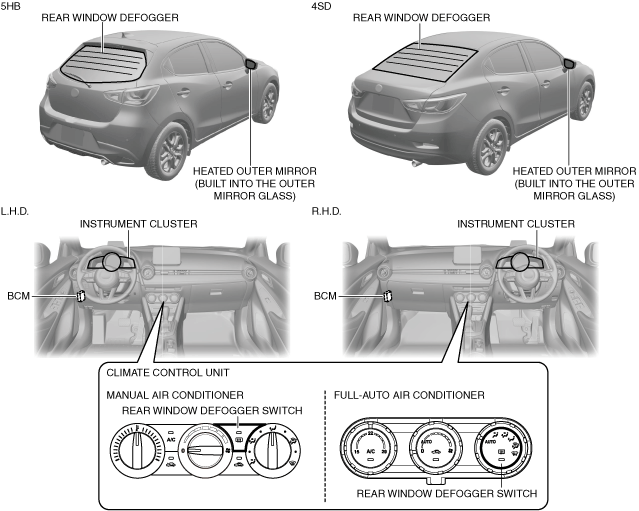

Rear window defogger

am2zzn00004990
