POWER WINDOW MAIN SWITCH

id091200012300

Purpose

Function

Manual

•  When the power window main switch is operated for manual open/close operation, it sends a manual open/close signal to the power window control module.

Auto

•  When the power window main switch is operated for auto open/close operation, it sends an auto open/close signal to the power window control module.

Power cut

•  When the power-cut switch is on (contact point: Open), the open/close operation of the front passenger seat and rear seat windows is disabled.

Construction

―  Driver's side switch

―  Passenger's side switch

―  Rear side switch (LR)

―  Rear side switch (RR)

―  Power cut switch

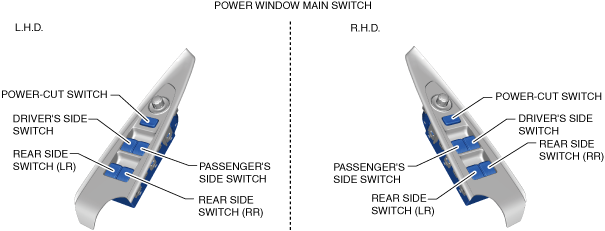

Type A

am2zzn00004668

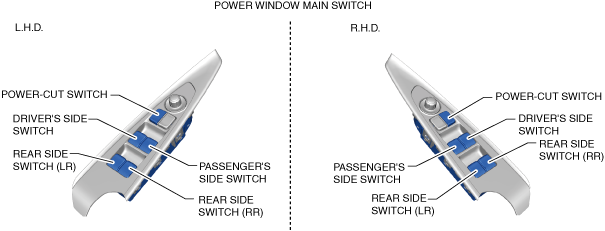

Type B, C

am2zzn00004669

Operation

Power window main switch operation

•  Contact points for door glass opening/closing can be changed by operating the power window main switch.

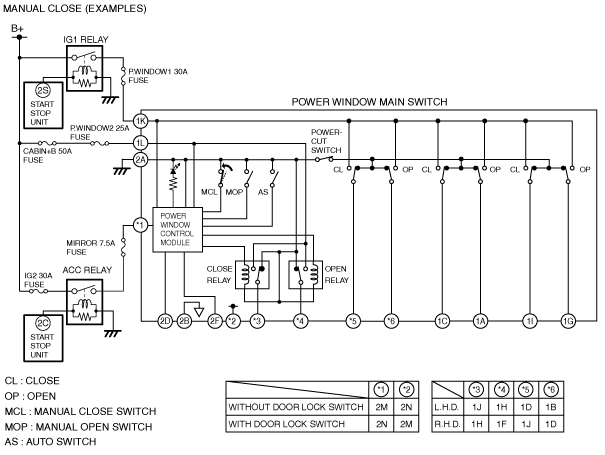

ac3wzn00000867

Power-cut switch operation

•  When the power-cut switch of the power window main switch is on (contact point: Open), current from each power window subswitch is interrupted.

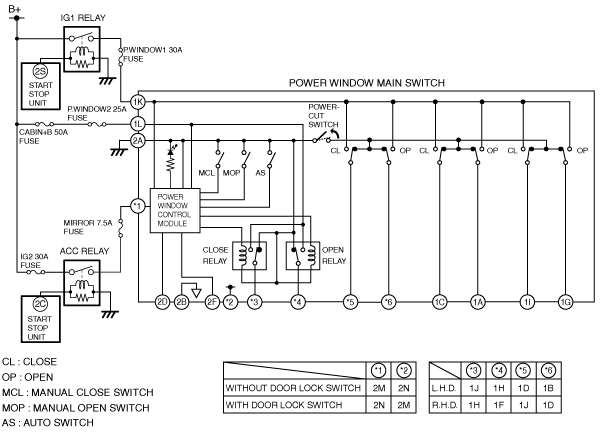

ac3wzn00000868

Fail-safe
