POWER OUTER MIRROR SYSTEM

id091200013500


Outline

•  Driver can operate the outer mirror remotely using the power outer mirror switch.
•  The driver can operate the outer mirror retract/return by operating the power outer mirror switch and the retract/return switch. (With retractable power outer mirrors)
•  When the driver locks/unlocks the doors, the power outer mirrors retract/return in conjunction with the door lock/unlock operation. (With outer mirror automatic folding)

Function


Outer mirror glass adjustment function

•  Outer mirror glass can be adjusted up/down and left/right electrically by operating the power outer mirror switch.


Automatic retract/return function

•  When the power outer mirror control module detects door lock/unlock, it retracts/returns the power outer mirrors.


IG OFF timer function

•  The power outer mirror switch can be operated for approx. 40 s after the ignition is switched from ON (engine off or on) to OFF.

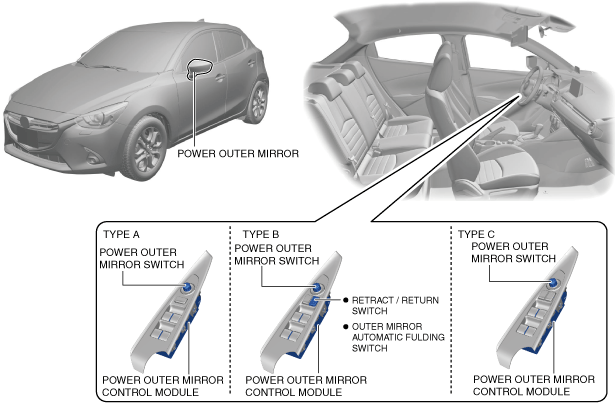

Structural View

am2zzn00004670

System Wiring Diagram

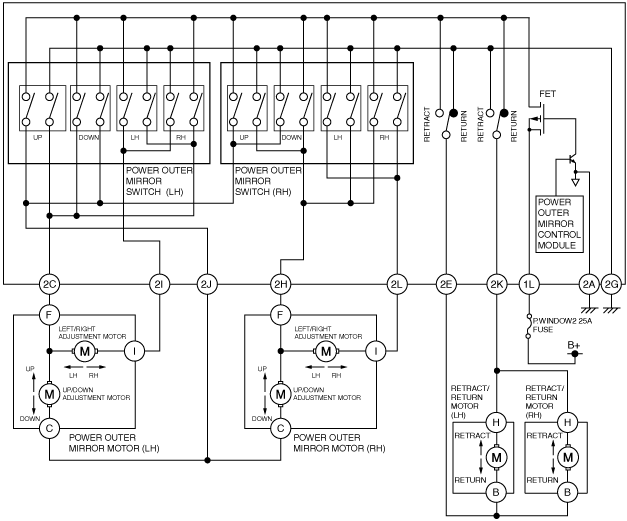

With retractable outer mirror type A,C

am2zzn00002389

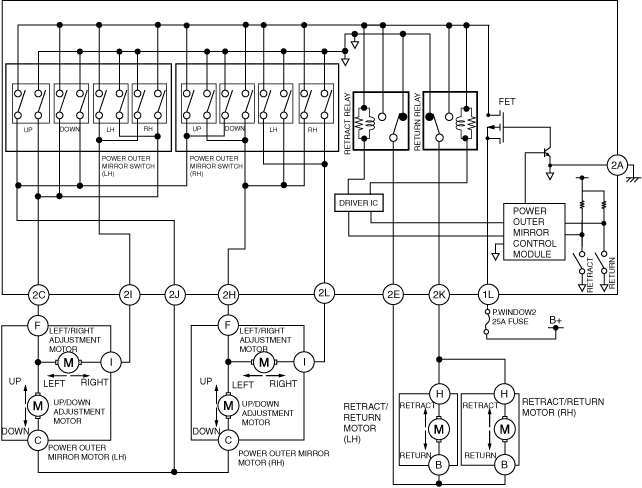

With retractable outer mirror type B

am2zzn00004821

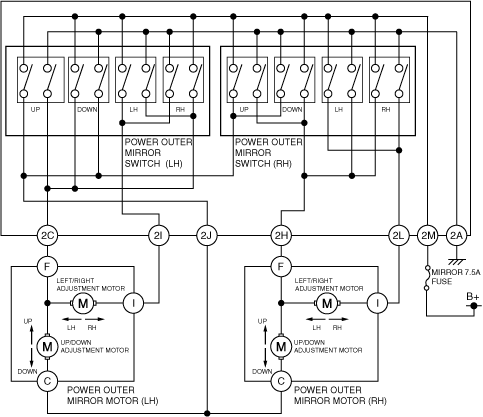

Without retractable outer mirror

ac3wzn00001398

Outer mirror glass adjustment operation (Example: adjusting left outer mirror upward)


With retractable outer mirror type A,C

1.  When the upward switch is turned on (1), the power outer mirror control module turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, the up/down adjustment motor operates upward (4) and the outer mirror operates upward.

am2zzn00002391

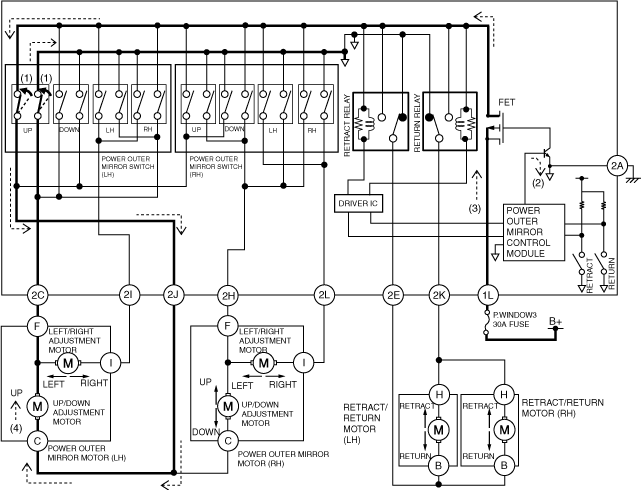

With retractable outer mirror type B

1.  When the upward switch is turned on (1), the power outer mirror control module turns the transistor on (2).

2.  The FET turns on when the transistor turns on and current flows (3).

3.  When the FET turns on, the up/down adjustment motor operates upward (4) and the outer mirror operates upward.

am2zzn00004822


Outer mirror glass retract/return operation (Example: retracting outer mirrors)

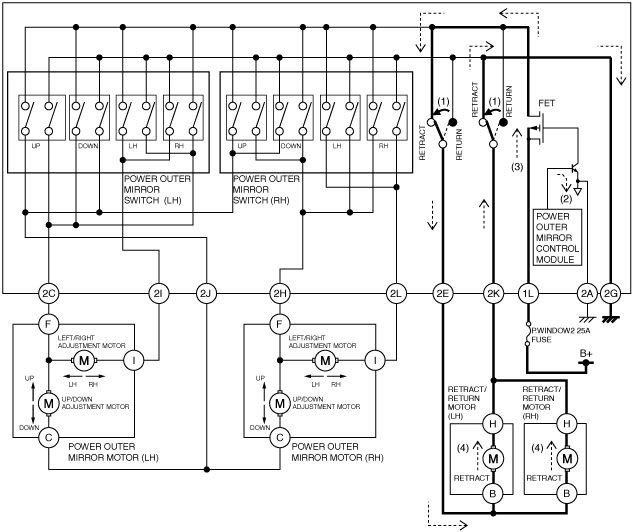

With retractable outer mirror type A,C
1.  When the switch is turned on (1) for retracting direction, the power outer mirror control module turns the transistor on (2).
2.  The FET turns on when the transistor turns on and current flows (3).
3.  When the FET turns on, the retract/return motor operates in the retracting direction (4) and the outer mirrors retract.
am2zzn00002392

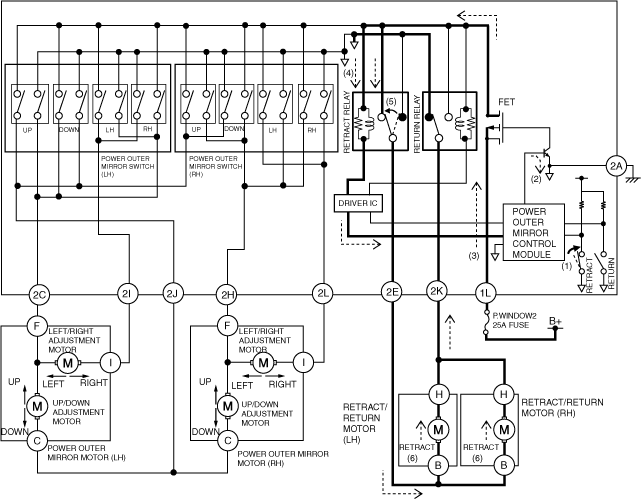

With retractable outer mirror type B
1.  When the retract side of the retract/return switch is turned on (1), the power outer mirror control module turns the transistor on (2).
2.  The FET turns on when the transistor turns on and current flows (3).
3.  When the FET turns on, the retract/return motor operates in the retracting direction (4) and the outer mirrors retract.
ac3wzn00001399

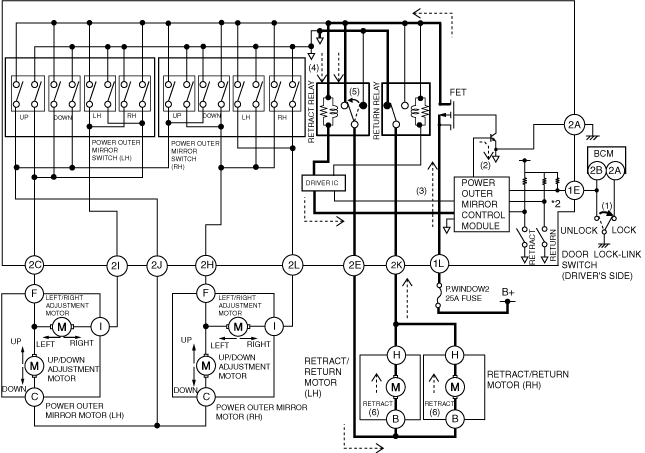

Power outer mirror retract operation (With outer mirror automatic folding) (Example: Retracting power outer mirrors automatically)

Operation condition
•  The power outer mirrors retract when the driver's door is locked with all of the following conditions met.
―  Outer mirror automatic folding switch is in AUTO position
―  Ignition switched OFF
―  Driver's door is unlocked
1.  When the power outer mirror control module detects (1) a lock signal, it turns the transistor on (2).
2.  The FET turns on when the transistor turns on and current flows (3).
3.  When the FET turns on, current flows (4) to the retract relay coil and the retract relay turns on (5).
4.  When the retract relay turns on, the retract/return motor operates (6) in the retract direction and the power outer mirrors retract.
am2zzn00004420


Power outer mirror return operation (With outer mirror automatic folding) (Example: Returning power outer mirrors automatically)

Operation condition
•  The power outer mirrors return when the driver's door is unlocked or the ignition is switched ON (engine off or on) with all of the following conditions met.
―  Outer mirror automatic folding switch is in AUTO position
―  Ignition switched OFF
―  Driver's door is locked
1.  When the power outer mirror control module detects (1) an unlock signal or the ignition switched ON (engine off or on), it turns the transistor on (2).
2.  The FET turns on when the transistor turns on and current flows (3).
3.  When the FET turns on, current flows (4) to the return relay coil and the return relay turns on (5).
4.  When the return relay turns on, the retract/return motor operates (6) in the return direction and the power outer mirrors return.
am2zzn00004421


IG OFF timer operation

•  When the ignition is switched from ON (engine off or on) to OFF, the IG OFF timer function inside the power outer mirror control module is turned on and the power outer mirror switch can be operated for approx. 40 s after IG OFF is detected.


Operation (Without retractable outer mirror)

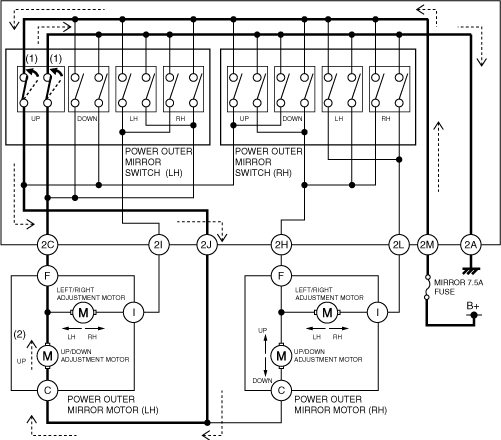

Outer mirror glass adjustment operation (Example: adjusting left outer mirror upward)

•  When the upward switch turns on (1), the up/down adjustment motor operates upward (2) and the outer mirror operates upward.
ac3wzn00001400


IG OFF timer operation

•  When the ignition is switched from ON (engine off or on) to OFF, the IG OFF timer function inside the power outer mirror control module is turned on and the power outer mirror switch can be operated for approx. 40 s after IG OFF is detected.


Fail-safe

•  Not applicable
