POWER OUTER MIRROR SWITCH

id091200014600

Purpose

• The switch turns on/off in conjunction with the driver's switch operation and switches the power outer mirror angle adjustment circuit and retract/return circuit contact points.

Function

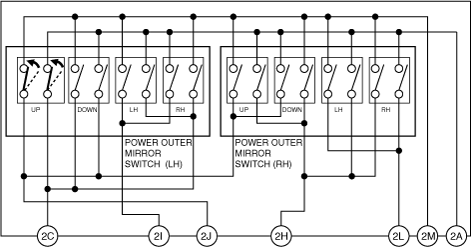

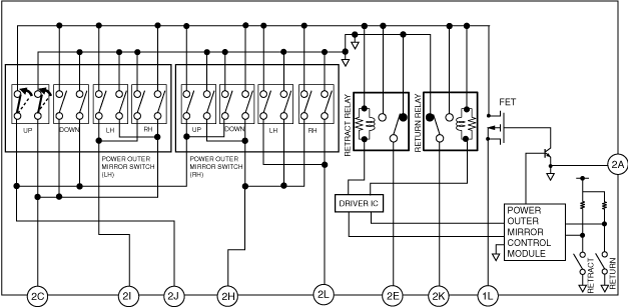

Up-down/left-right adjustment function

• The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the up-down/left-right adjustment motor is switched.

Left/right selection function

• The power outer mirror switch is used to select the side on which adjustment of the power outer mirror glass is desired.

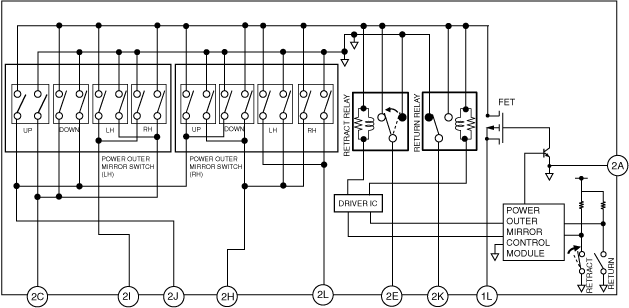

Retract/return function (With retractable outer mirror)

• The power outer mirror switch switches the contact point according to the switch operation. As a result, the circuit to the retract/return motor is switched.

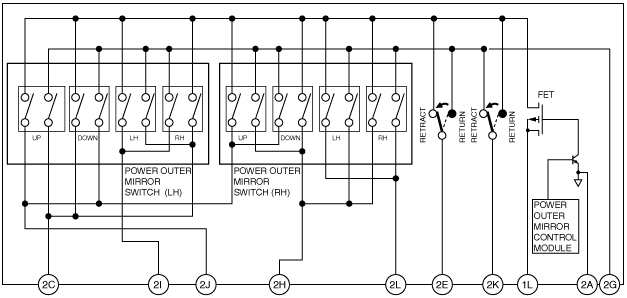

Outer mirror automatic folding switch (With outer mirror automatic folding)

• The auto-retractable power outer mirror switch changes the contact point according to the switch operation. As a result, the circuit to the retract/return motor is changed.

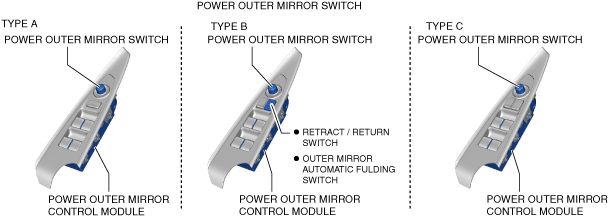

Construction

• The power outer mirror switch consists of the following parts.

― Up-down/left-right adjustment switch

― Left/right selection switch

― Retract/return switch (With retractable outer mirror)

― Outer mirror automatic folding switch (With outer mirror automatic folding)
