SENSOR COVER REMOVAL/INSTALLATION

id091200025000

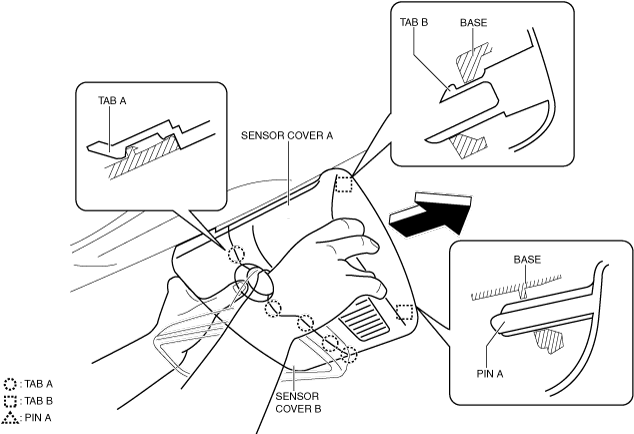

1.  Pull the sensor cover A in the direction of the arrow shown in the figure and detach tab A of sensor cover A and sensor cover B.

am2zzw00015289

2.  Pull the sensor cover A in the direction of the arrow shown in the figure, detach tab B and pin A for sensor cover A and the base, and remove the sensor cover A from the base.

3.  Remove the wiring harness from the hook.

am3zzw00019980

4.  Pull the sensor cover B in the direction of the arrow shown in the figure, detach the tab and pin for sensor cover B and the base, and remove the sensor cover B from the base.

5.  Install in the reverse order of removal.
