SEAT

id091300009300

Outline

Front seat

• High performance, front seat belts have been adopted for the safety of occupants while traveling in the vehicle.

• Front seats which side air bag modules have been adopted to soften the impact to the chest, abdominal, and lumbar areas of the occupants during a collision. (With side air bag) (See SIDE AIR BAG MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See SIDE AIR BAG MODULE [STANDARD DEPLOYMENT CONTROL SYSTEM].)

• An occupancy sensor has been adopted to the front seat on the front passenger seat to determine the seating condition of the front passenger seat.

• A seat warmer system has been adopted which warms the occupants in the front seats by warming the front seat backs and front seat cushions. (With seat warmer system)

Rear seat

• A folding-type rear seat has been adopted which enlarges occupancy space.

• 6:4 split folding-type rear seat has been adopted which can adjust occupancy space according to the size or amount of the luggage.

• The following parts have been adopted to the rear seat to mediate injury to a child during a collision or emergency braking.

― ISO FIX anchor

― Top tether anchor

• A remote handle lever has been adopted which can unlock the seat back from the trunk side. (4SD)

Specification

• The front and rear seat specifications are as follows:

×: Applicable

—: Not applicable

Seat	Part/type		Side air bag	Occupancy sensor	Seat material
Front seat	Driver's seat		×	—	Cloth / leather + cloth
	Driver's seat		—	—
	Passenger's seat		×	×
	Passenger's seat		—	×
Rear seat	Cushion		—	—
	Seat back	6:4 split			Cloth / leather + cloth
	Seat back	Integrated			Cloth

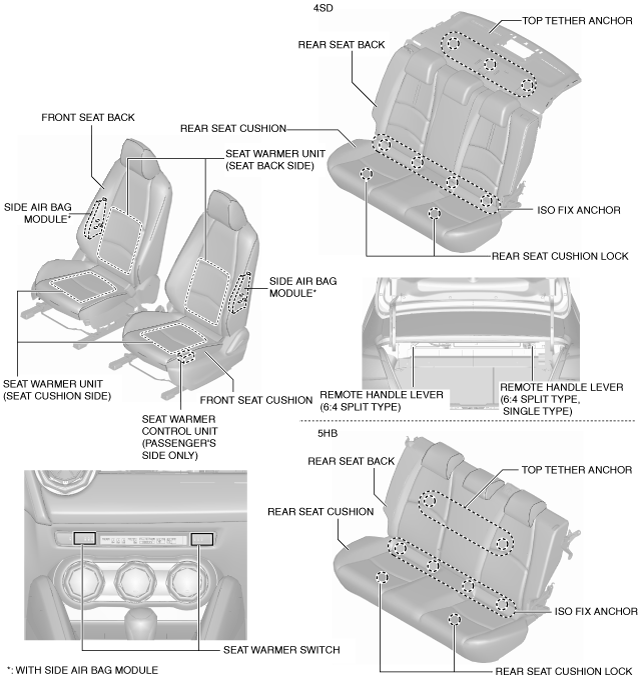

Structural view

am2zzn00003106
