•  The seat warmer control unit supplies power to the filaments built into the seat warmer unit.

•  The seat warmer control unit detects the seat warmer unit temperature by the thermistor built into the seat warmer unit.

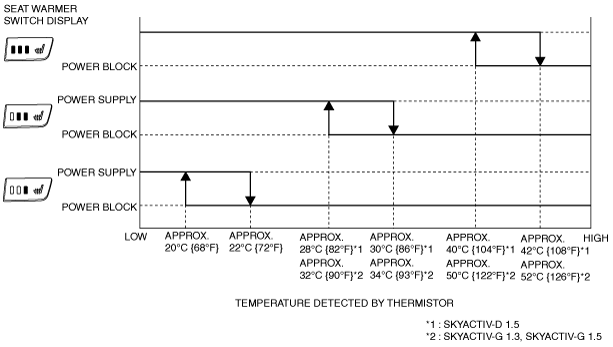

•  The seat warmer control unit maintains a constant temperature around the seat warmer unit by continuing to supply power to the seat warmer unit according to the temperature in the following table detected by the thermistor.

am2zzn00003113

•  The seat warmer control unit is located on the bottom of the passenger's front seat.

am2zzn00003114

•  For the seat warmer control unit operation, refer to the SEAT WARMER SYSTEM. (See SEAT WARMER SYSTEM.)

•  Not applicable
