SEAT WARMER UNIT INSPECTION

id091300801400

Warning

•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

Simple Inspection

1.  Place a cooling agent on the seat cushion (thermistor).

ac5ccw00001619

2.  Operate the seat warmer switch to turn on the seat warmer.

3.  Touch the seat cushion and the seat back to verify a temperature increase.

4.  If a temperature increase cannot be verified, go to the resistance inspection. (See Resistance Inspection.)

Resistance Inspection

Driver-side

Front seat cushion

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Disconnect the driver-side seat warmer unit connector.

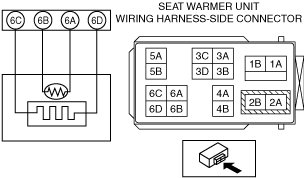

4.  Inspect for continuity between the driver-side seat warmer unit connector terminal 6C and 6D.

am2zzw00015455

am2zzw00008291

―  If not as indicated in the table, replace the front seat cushion trim. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION)

5.  Measure the resistance between the driver-side seat warmer unit connector terminals 6A and 6B, and verify that the condition is as indicated in the table.

am6ccw00000455

―  If the thermistor characteristic is not as shown in the graph, replace the front seat cushion trim. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

Front seat back

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Disconnect the driver-side seat warmer unit connector.

4.  Inspect for continuity between the driver-side seat warmer unit connector (short cord) terminal A and B.

am2zzw00012982

am2zzw00012981

―  If not as indicated in the table, replace the front seat back trim. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION)

Passenger-Side

Front seat cushion

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Disconnect the passenger-side seat warmer unit connector.

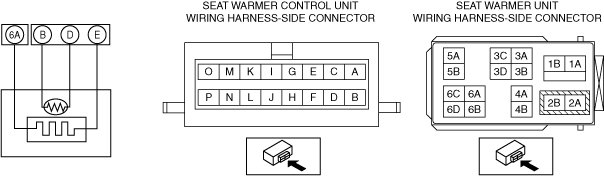

4.  Inspect for continuity between the passenger-side seat warmer unit connector terminal 6A and E.

am2zzw00015456

am2zzw00012983

―  If not as indicated in the table, replace the front seat cushion trim. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

5.  Measure the resistance between the passenger-side seat warmer unit connector terminals B and D, and verify that the condition is as indicated in the table.

am6ccw00000455

―  If the thermistor characteristic is not as shown in the graph, replace the front seat cushion trim. (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

Front seat back

1.  Switch the ignition to off.

2.  Disconnect the negative battery cable and wait 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

3.  Disconnect the passenger-side seat warmer unit connector.

4.  Inspect for continuity between the passenger-side seat warmer unit connector (short cord) terminal A and B.

am2zzw00012981

am2zzw00012982

―  If not as indicated in the table, replace the front seat back trim. (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)
