FRONT SEAT BACK FRAME DISASSEMBLY/ASSEMBLY

id091300825800

1.  Disassemble in the order indicated in the table.

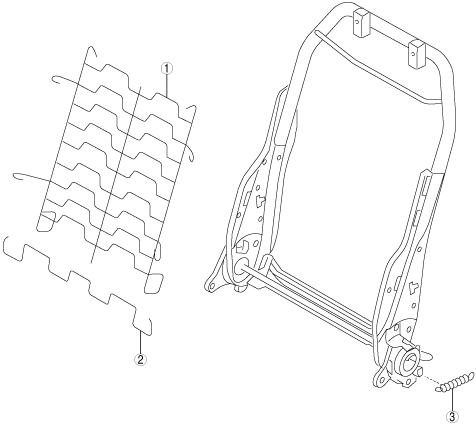

am2zzw00012959

1	Suspension mat
2	Spring A
3	Spring B

2.  Assemble in the reverse order of disassembly.
