FRONT SEAT CUSHION FRAME/ADJUSTER UNIT DISASSEMBLY/ASSEMBLY

id091300955400

1.  Disassemble in the order indicated in the table.

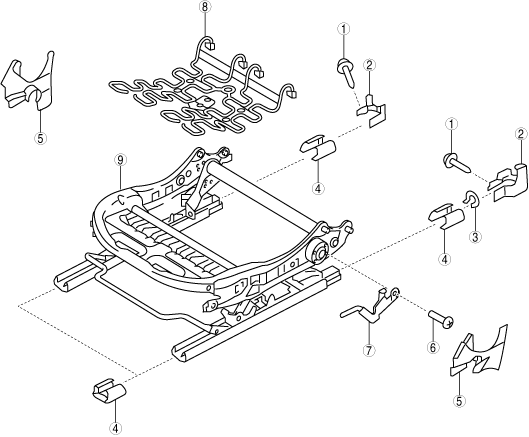

am2zzw00012976

1	Screw A
2	Lower cover
3	Protector
4	Rail cover
5	Reverse cover
6	Screw B
7	Lever unit
8	Spring
9	Adjuster unit

2.  Assemble in the reverse order of disassembly.
