CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION

id091300999600

Top Tether Anchor

4SD

Note

•  When removing the top tether anchor from the vehicle or putting it back in, it can be performed easier by removing the head restraint. (Except head restraint-integrated rear seat)

1.  Open the cover.

am6zzw00011381

2.  Remove the bolts.

3.  Remove the top tether anchors.

4.  Install in the reverse order of removal.

5HB

Note

•  The top tether anchors are integrated into the rear seat back frame.

•  For the top tether anchor removal/installation, refer to the rear seat back frame removal/installation. (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION.)

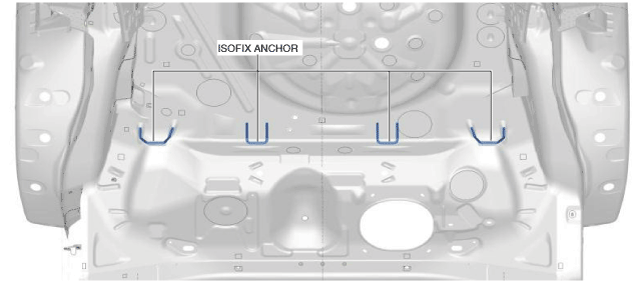

ISOFIX Anchor

Note

•  ISOFIX anchors are integrated with the body.

am2zzw00009856
