SECURITY AND LOCKS


id091400108100


Outline

•  A power door lock system has been adopted in which all doors are locked/unlocked when the driver's door is locked/unlocked using the driver's door lock knob, or the door key cylinder is operated.
•  A liftgate opener system has been adopted in which the liftgate can be opened just by pressing the liftgate opener switch.
•  A keyless entry system has been adopted in which locking/locking is performed by operation of the remote transmitter button, even from a location away front the vehicle. (With keyless entry system)
•  An advanced keyless entry system has been adopted which performs automatic authorization of the remote transmitter that is carried and locking/unlocking of the doors. (With advanced keyless entry system)
•  A push button start system has been adopted that automatically performs authorization of the remote transmitter brought into the vehicle.
•  An immobilizer system has been adopted that only allows remote transmitters that have been previously programmed to the vehicle to start the engine.
•  A theft-deterrent system has been adopted which activates the theft-deterrent siren or theft-deterrent horn if a door, the liftgate/trunk lid, or the hood is opened improperly. (With theft-deterrent system)

Structural View


Power door lock system

am2zzn00004485

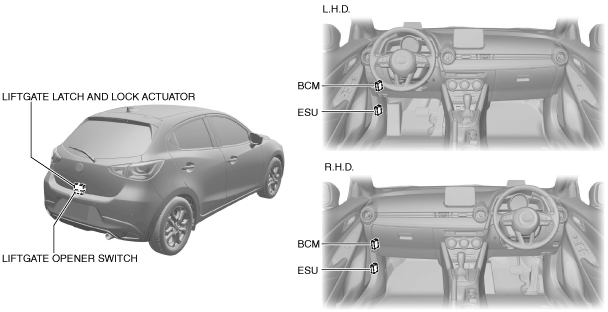

Liftgate opener system

am2zzn00004486

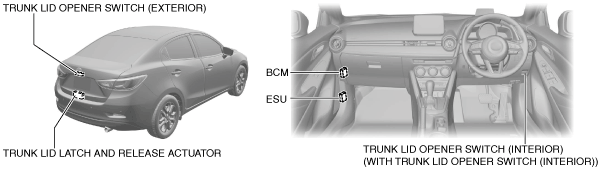

Trunk lid opener system

am2zzn00004487

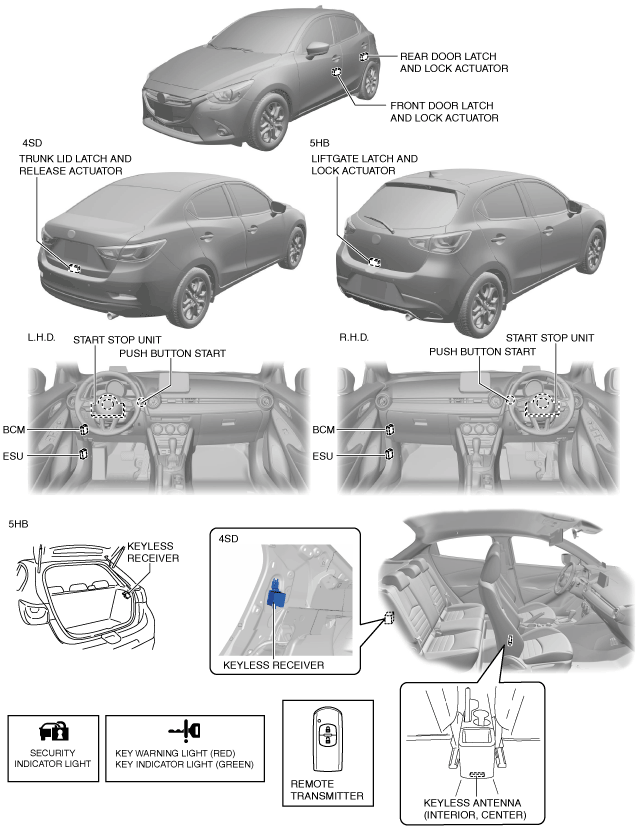

Keyless entry system/push button start system/immobilizer system

am2zzn00004864

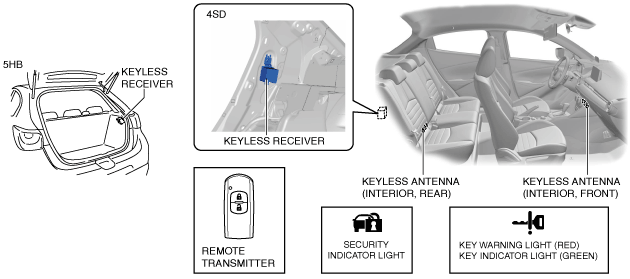

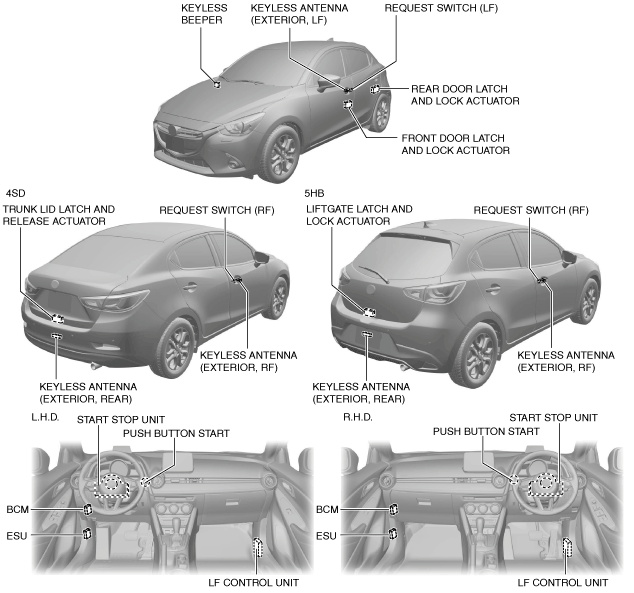

Advanced keyless entry system/push button start system/immobilizer system

am2zzn00004489
am2zzn00004865


Theft-deterrent system

With intruder sensor

am2zzn00004491

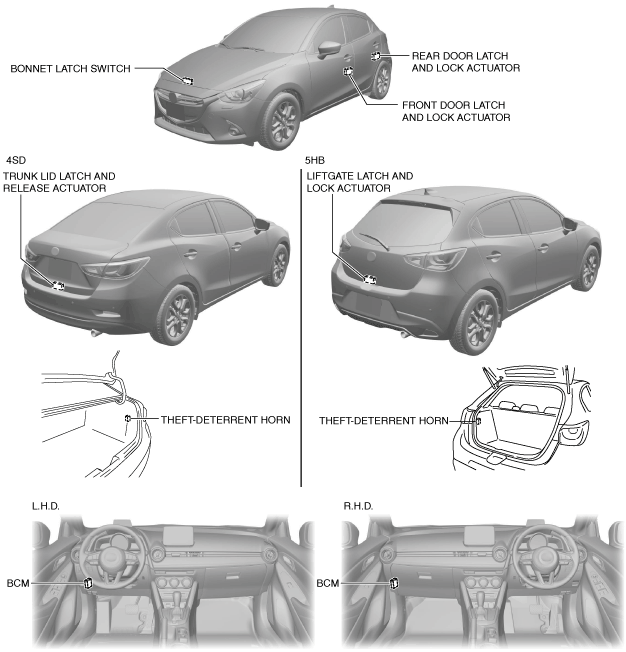

Without intruder sensor

am2zzn00004866
