FRONT DOOR LOCK-LINK SWITCH

id091400108500

Purpose

• Switches on/off in conjunction with the driver's door lock knob lock/unlock, and the driver's front door lock/unlock condition is output to the BCM.

Function

• The door lock-link switch contact point changes in conjunction with the driver's door lock knob lock/unlock operation.

Construction

• The driver's door lock knob and door lock-link switch are connected by the door lock-link cable, and are built into the driver's door front door latch and lock actuator.

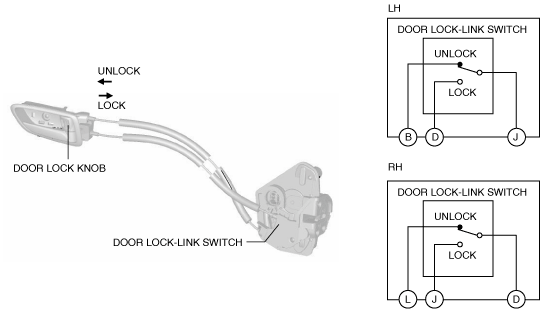

am2zzn00002399

Operation

Lock operation

• When the driver's door lock knob is turned to the lock position, the door lock-link cable is pressed, and the door lock-link switch is switched to the lock side.

Unlock operation

• When the driver's door lock knob is turned to the unlock position, the door lock-link cable is pulled, and the door lock-link switch is switched to the unlock side.

Fail-safe

• Not applicable
