SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE
id091400112900
-
Caution
-
• The personalization feature may not be set correctly if [Not equipped] is selected in the setting displayed on the M-MDS. Do not select [Not equipped] in the setting displayed on the M-MDS.
• Settings of some personalization features displayed on the M-MDS cannot be switched depending on the vehicle specification.
Advanced Keyless Entry System
Using M-MDS
1. Connect the M-MDS to DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
-
1. Select the “Module Programming”.
2. Select “Programmable Parameters”.
3. Select menu in the SSU.
4. Select an item name, and then select option.
|
M-MDS display
|
Function
|
Initial setting
|
Setting contents
|
Control unit
|
|
Advanced keyless function.*1
|
The advanced keyless entry system and push button start system functions can be disabled.
|
Enabled.
|
Enabled. / Disabled.
|
Start stop unit
|
|
Walk Away Lock.
|
The out-of-area (reception area) type auto lock function can be set.
|
OFF
|
OFF / ON
|
Start stop unit
|
|
Auto Relock Time.
|
The operation start time of the auto re-lock function can be changed.
|
30 seconds
|
30 seconds / 60 seconds / 90 seconds
|
Start stop unit
|
|
Keyless Lock Beep Volume.
|
The keyless beeper volume can be adjusted.
|
Medium / off*2
|
Off / Low / Medium / High
|
Start stop unit
|
*1 :Because the push button start system function has been disabled, to start the engine press the upper part of the remote transmitter against the center of the push button start.
*2 :The initialization setting varies depending on the market and specification.
Setting method by operation of remote transmitter button
-
• The following setting can be changed by operation of the remote transmitter button.
|
M-MDS display
|
Function
|
Initial setting
|
Setting content
|
Control unit
|
|
Keyless Lock Beep Volume.
|
The keyless beeper volume can be adjusted.
|
Medium
|
Off / Low / Medium / High
|
Start stop unit
|
-

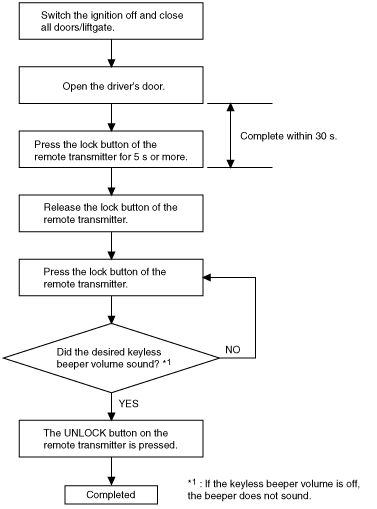

• Change the setting for the keyless beeper volume referring to the following procedure:
-
Note
-
• If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.
-
― The ignition is switched to ACC or ON (engine off or on).
― The driver's door is closed.
― The liftgate is open.
― The remote transmitter operation is not performed for approx. 10 s.
― The UNLOCK button on the remote transmitter is pressed.
― A request switch is pressed.
Using center display
-
Keyless Entry System
Using M-MDS
1. Connect the M-MDS to DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
-
1. Select the “Module Programming”.
2. Select “Programmable Parameters”.
3. Select menu in the SSU.
4. Select an item name, and then select option.
|
M-MDS display
|
Function
|
Initial setting
|
Setting contents
|
Control unit
|
|
Auto Relock Time.
|
The operation start time of the auto re-lock function can be changed.
|
30 seconds
|
30 seconds / 60 seconds / 90 seconds
|
Start stop unit
|
Using center display
-
am3zzw00014027
