LIFTGATE LOCK ACTUATOR INSPECTION

id091400512100

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION.)

2.  Liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

3.  Liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)

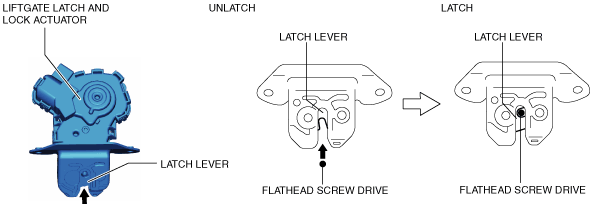

4.  Press in the latch lever of the liftgate latch and lock actuator using a flathead screwdriver, and set it to the latched condition.

am2zzw00007855

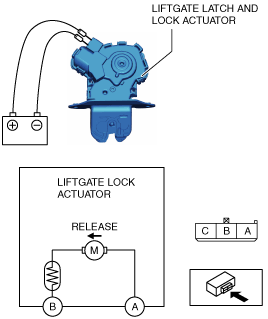

5.  Connect terminal A to the positive battery voltage, connect terminal B to the ground, and verify that the latch lever is released and the condition changes to the unlatch condition.

am2zzw00007856

•  If the operation cannot be verified, replace the liftgate latch and lock actuator. (See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
