RADIATOR GRILLE DISASSEMBLY/ASSEMBLY

id091600460100

1.  Disassemble in the order indicated in the table.

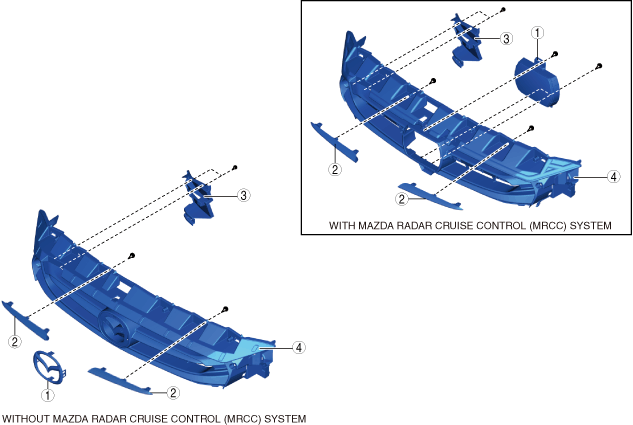

am2zzw00013558

1	Ornament
2	Grille garnish (with grille garnish)
3	Radiator grill cover (SKYACTIV-G 1.3, SKYACTIV-G 1.5)
4	Radiator grille reinforcement

2.  Assemble in the reverse order of disassembly.
