MUDGUARD REMOVAL/INSTALLATION

id091600467600

Front Mudguard

1.  Remove the screws and fasteners.

am2zzw00015333

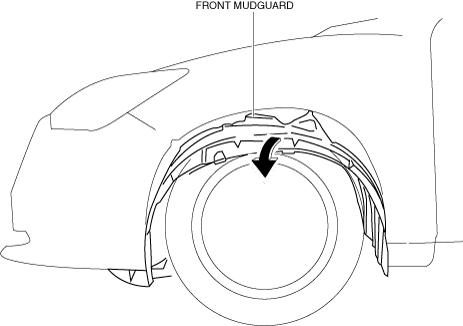

2.  Pull the front mudguard in the direction of the arrow shown in the figure and remove it.

am2zzw00015334

3.  Install in the reverse order of removal.

Rear Mudguard

LH

1.  Remove the rear splash shield (LH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

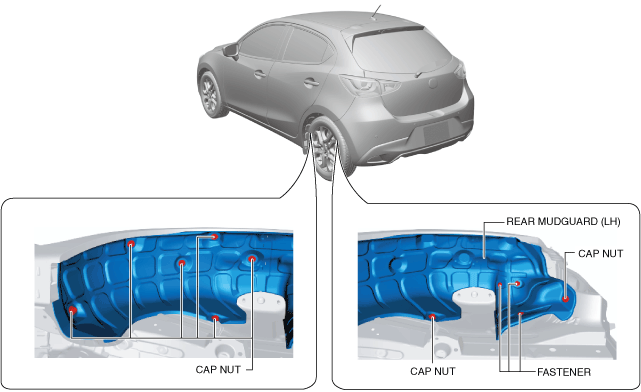

2.  Remove the cap nuts and fasteners.

am2zzw00015335

3.  Pull the rear mudguard in the direction of the arrow shown in the figure.

am2zzw00015336

4.  Install in the reverse order of removal.

RH

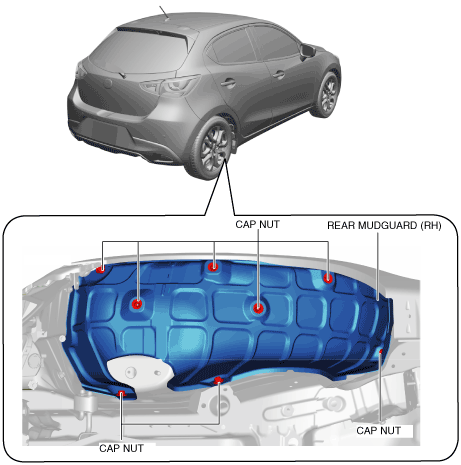

1.  Remove the cap nuts.

am2zzw00015337

2.  Pull the rear mudguard in the direction of the arrow shown in the figure.

am2zzw00015338

3.  Install in the reverse order of removal.
