CENTER PANEL REMOVAL/INSTALLATION

id091700600500

1.  Open the glove compartment.

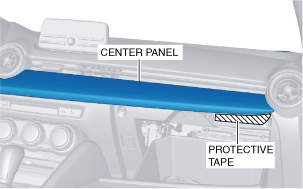

2.  Affix protective tape to the shaded position shown in the figure.

Caution

•  If the remover tool is inserted without affixing protective tape, the passenger-side lower panel may be damaged. Always affix protective tape before inserting the remover tool to prevent damage.

•  If work using protective tape is performed in an area where the temperature can increase drastically or the protective tape is left adhered for a long period of time, tape adhesive could remain area where the protective tape was applied when it is peeled off. When applying protective tape, avoid areas where the temperature of the tape can increase drastically and peel off the protective tape soon after the work is completed.

am2zzw00013840

3.  Insert the remover tool into the position shown in the figure and move it in the direction of arrow (1) shown in the figure.

am2zzw00013841

4.  Move the center panel in the direction of arrow (2) shown in the figure and detach clips A and B.

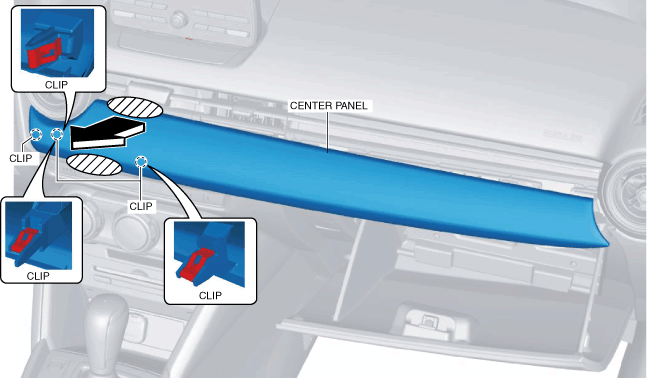

5.  Hold the shaded areas shown in the figure with your hands, pull the center panel in the direction of the arrow and detach the clips.

am2zzw00013842

6.  Remove the center panel.

7.  Install in the reverse order of removal.
