SIDE WALL REMOVAL/INSTALLATION

id091700602200

Driver-side

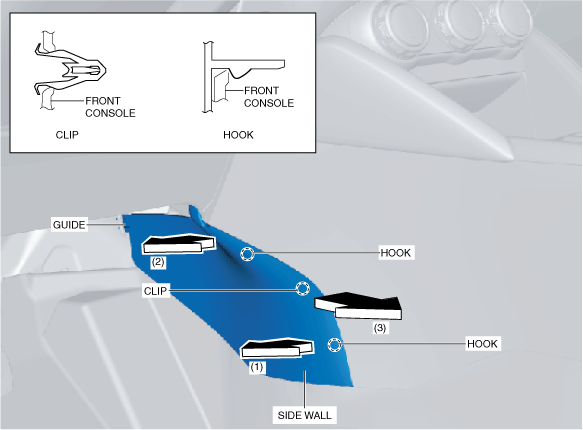

1.  Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching the hooks and clip.

Caution

•  If the hooks and clip are removed forcefully, the guide may be damaged. Carefully remove the hooks and clip so as not to damage the guide.

am2zzw00013749

2.  Pull the side wall in the direction of the arrow (3) and remove it while detaching the guide.

3.  Install in the reverse order of removal.

Passenger-side

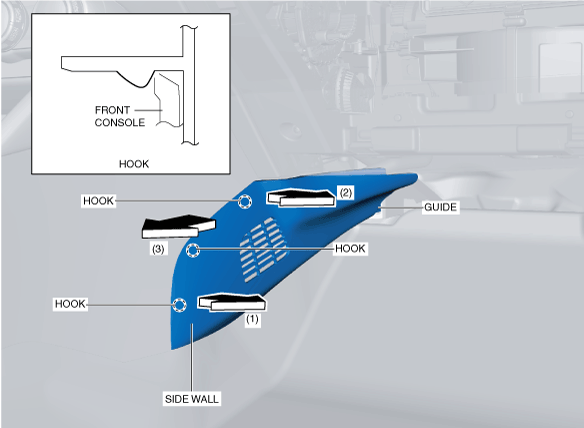

1.  Pull the side wall in the direction of the arrow in the order of (1), (2) and remove it while detaching the hooks.

Caution

•  If the hooks are removed forcefully, the guide may be damaged. Carefully remove the hooks so as not to damage the guide.

am2zzw00007636

2.  Pull the side wall in the direction of the arrow (3) and remove it while detaching the guide.

3.  Install in the reverse order of removal.
